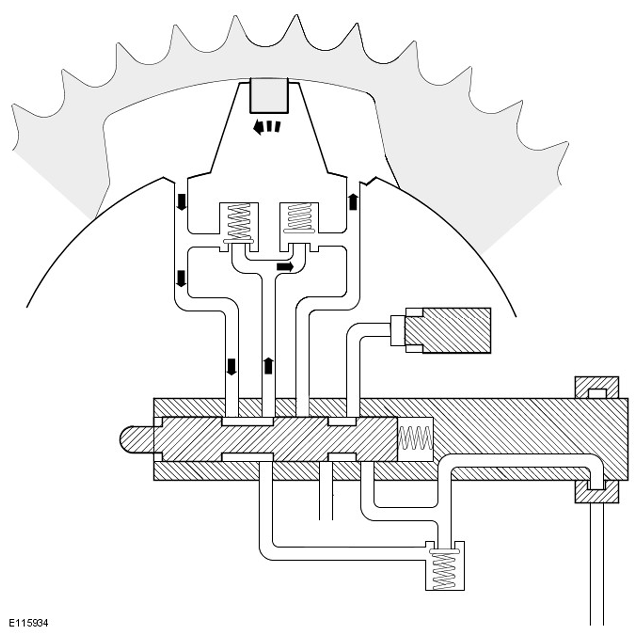

Variable Camshaft Timing Unit Schematic - Retard

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
G11284803

To retard the camshaft timing, the ECM adjusts the signal to the VCT solenoid to move the spool valve to close the retard chamber oil passage and connect the advance chamber oil passage to the inlet oil.

Each momentary decrease of the torque acting on the camshaft causes oil to transfer from the advance chamber, through the spool valve and the retard check valve to the retard chamber, and so retard the camshaft timing.
