Cap Alignment with Connecting Rod

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.

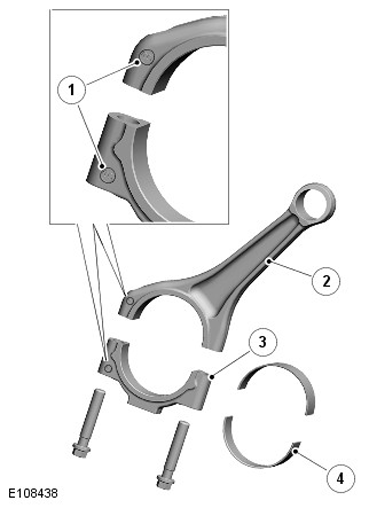

G11284790
ITEM DESCRIPTION
1 Alignment marks
2 Connecting rod
3 Cap
4 Bearings

The correct alignment of the cap with the connecting rod is indicated by marks on adjacent faces of the two components.
