Description And Operation: Crankshaft: Notes

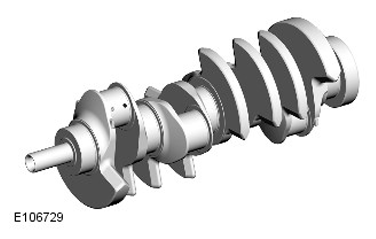

The crankshaft is made from spheroidal graphite cast iron, which, compared with grey cast iron, has higher mechanical strength, ductility and increased shock resistance. The undercut and rolled fillets also improve strength. Eight counter-balance weights ensure low vibration levels and the large, cross-drilled main bearing journals are designed to contribute to stiffness.

An oil groove in the upper half of each main bearing transfers the oil into the crankshaft for lubrication of the connecting rod bearings. A thrust washer is installed each side of the top half of the center main bearing.
