General Procedures: Draining

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The spilling of hot engine oil is unavoidable during this procedure, care must be taken to prevent scalding.
CAUTION: Correct installation of the oil filler cap can be obtained by tightening the cap until hard stop.
NOTE: Clean the components general area prior to dismantling.
  1. CAUTION: Make sure the engine is warm.

    Start the engine and allow to run for 10 minutes, stop the engine.

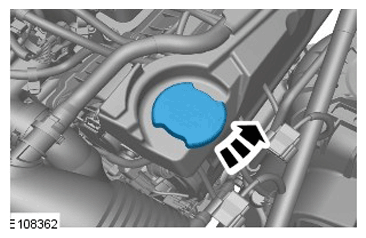

  2. G11284811
  3. Refer to: Engine Cover - 5.0L

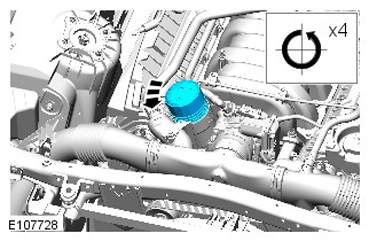

  4. G11284812
    • Loosen the element cover 4 complete turns to allow engine oil to drain from the filter cover.
    • Make sure that the O-ring seal is exposed.
  5. NOTE: Allow 10 minutes for the engine oil to drain from the oil filter housing.
  6. NOTE: Remove and discard the O-ring seal.

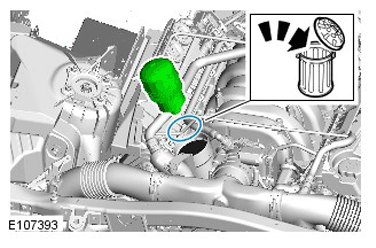

    G11284813

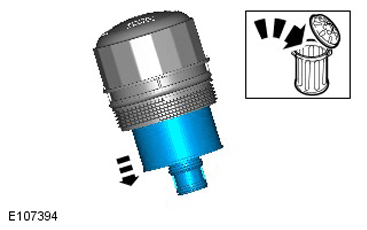

  7. G11284814

    Remove and discard the oil filter element.

  8. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  9. Refer to: Air Deflector
  10. CAUTION:
    • Be prepared to collect escaping oil.
    • Allow at least 10 minutes for the engine oil to drain.
    NOTE: Discard the sealing washer.
    G11284854

    FILLING

  11. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    NOTE: Install a new sealing washer.

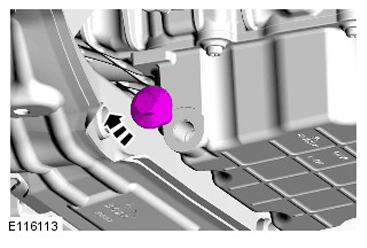

    G11284816

    Torque Specification: 24 Nm

  12. Refer to: Air Deflector
  13. NOTE: Install new O-ring seals.

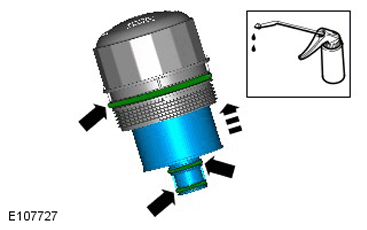

    G11284817

    Lubricate the oil filter element O-ring seal with clean engine oil.

  14. CAUTION: Tighten the component finger tight first.

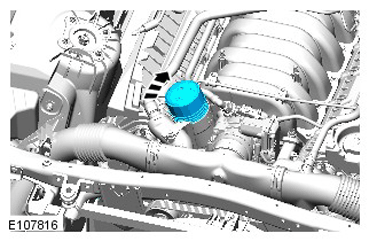

    G11284818
    • Torque Specification: 25 Nm
  15. CAUTION: Make sure that the vehicle is left for 5 minutes from filling with oil and that the engine oil level is reading at least minimum (by following Steps  9- 13), before starting the engine.
    • Fill the engine with oil - for filling values on vehicles without supercharger:

      Refer to: Specifications

    • Fill the engine with oil - for filling values on vehicles with supercharger:

      Refer to: Specifications

    • Clean any residual engine oil from the oil filler cap area.

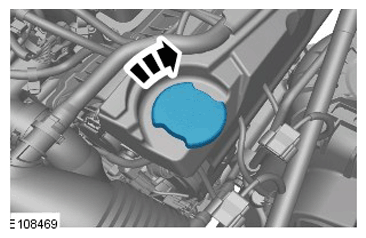

  16. G11284819
  17. CAUTION: Make sure that the vehicle has been left for 5 minutes from filling with oil.

    Follow the Steps  9- 13 before starting the engine.

    • Start the engine and allow to run for 10 minutes, stop the engine.
    • Check for leaks.
  19. CAUTION:
    • Make sure that the selector lever and the gearshift mechanism are in the park (P) position.
    • Make sure that the hood is open.
    • Turn the ignition on.
  20. G11507812
    • Scroll through the trip menu to access the engine oil level display.
  21. G11507813
    • Press the cruise control cancel button twice within 2 seconds.
  22. G11507814
    • The message center display will revert to the normal display in the trip computer.
    • Scroll through the trip menu to access the engine oil level display.
    • Check that the oil level display shows an oil level reading.
    • Only after having started and run the engine for 10 minutes (as indicated in Step  8), switch off the engine, then stabilizing for 10 minutes, take a reading from the oil level display and, if necessary top up with engine oil.
  23. NOTE: If instructed to follow Steps  9- 13 in a previous step, return to Step  8 and continue the procedure.

    Turn the ignition off.

  24. Allow 10 minutes for the engine oil level to stabilize if there has been additional oil top up.
  25. NOTE: The following steps are to update the average oil level value.
    G11507813
    • Turn the ignition on.
    • Press and hold the cruise control cancel button for more than 2 seconds.
    • The message center display will revert to the normal display in the trip computer.
  27. Turn the ignition off.
  28. Turn the ignition on.
  29. G11507814
    • Scroll through the trip menu to access the engine oil level display.
    • Make sure that the average oil level value has now been updated.
  30. Refer to: Engine Cover - 5.0L
