Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: Battery Disconnect and Connect .
Refer to: Cooling System Partial Draining and Vacuum Filling .
Refer to: Engine Cover - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol .
Refer to: Air Cleaner Outlet Pipe T-Connector .

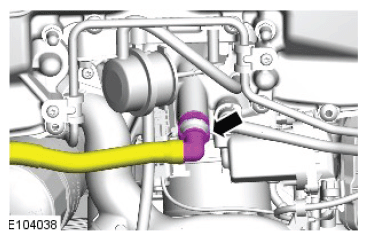

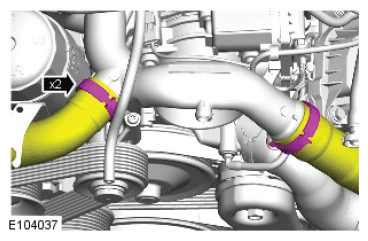

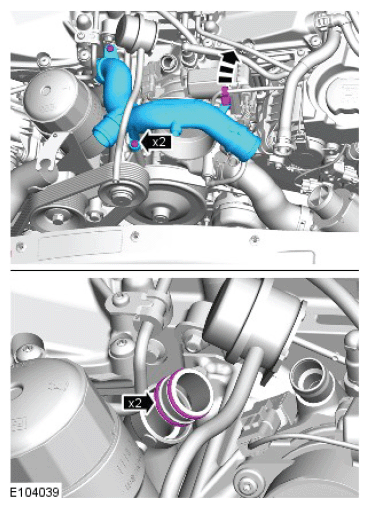

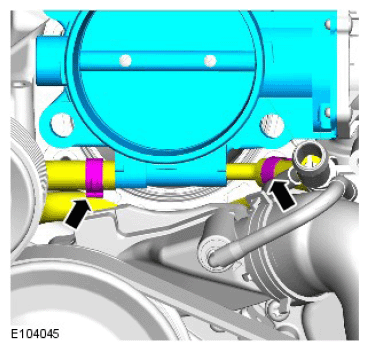

NOTE:
- This step should only be carried out on vehicles pre 2015.
- Remove and discard the seals.
Renew Part: Engine coolant outlet seal.

Torque Specifcation: 10 Nm

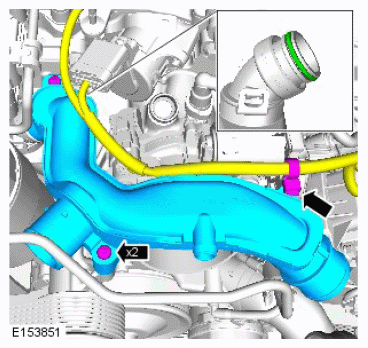

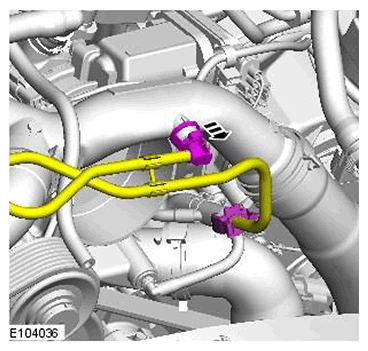

NOTE:
- This step should only be carried out on vehicles from 2015 onwards.
- Remove and discard the seal.
Renew Part: Engine coolant outlet seal.

Torque Specifcation: 10 Nm
Torque Specifcation: 10 Nm

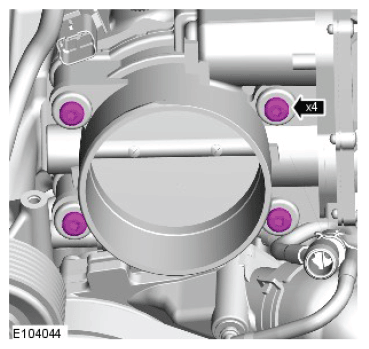

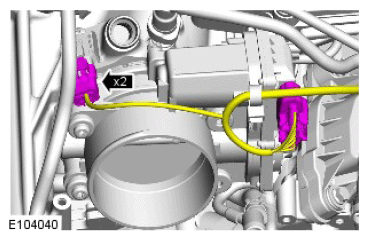

CAUTION:
- Take extra care when removing the throttle body, failure to follow this instruction may result in damage to the manifold absolute pressure and temperature (MAPT) sensor.
- Do not attempt to clean the throttle body bore, build up of deposits reduces air leakage past the throttle plate at the fully closed position.
- Remove and discard the gasket.
