Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions .
  2. Refer to: Fuel System Pressure Release - V8 5.0L Petrol/V8 S/C 5.0L Petrol .
  3. Refer to: Battery Disconnect and Connect .
  4. Refer to: Fuel Injection Component Cleaning .
  5. Refer to: Cowl Vent Screen .
  6. G11508541

    Torque Specifcation: 45 Nm

  7. G11541545
  8. CAUTION: Be prepared to collect escaping fluids.
    G11288194
  9. G11288195
  10. CAUTION: Be prepared to collect escaping fluids.
    G11288197
  11. Refer to: Air Cleaner Outlet Intermediate Pipe RH (Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal and Installation).
  12. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11286716
  13. G11285152

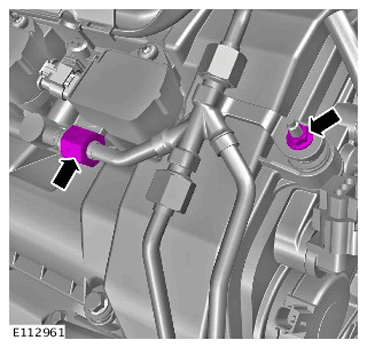

  14. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11285153
  15. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  16. NOTE: Engine shown removed for clarity.
    G11285155
  17. NOTE: Engine shown removed for clarity.
    G11285201
  18. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    NOTE: Engine shown removed for clarity.
    G11285157
  19. Lower the vehicle.

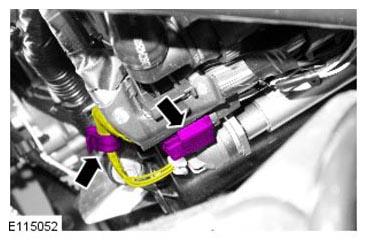

  20. G11302021
  21. NOTE: LH shown RH similar.
    G11288037
  22. NOTE: LH shown RH similar.
    G11288038

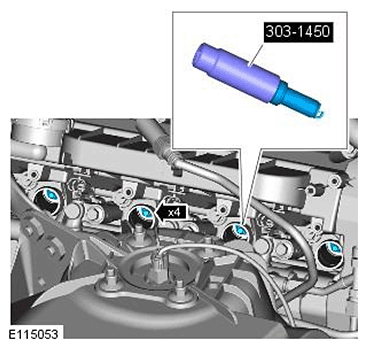

  23. G11541558

    Special Tool(s):  303-1450

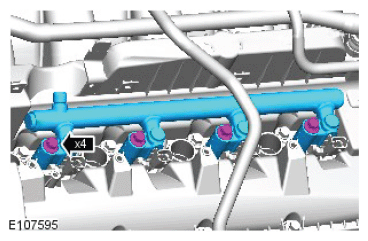

  24. CAUTION: Make a note of the fuel injector alignment to the fuel rail prior to removal.
    NOTE: LH shown RH similar.
    G11288040

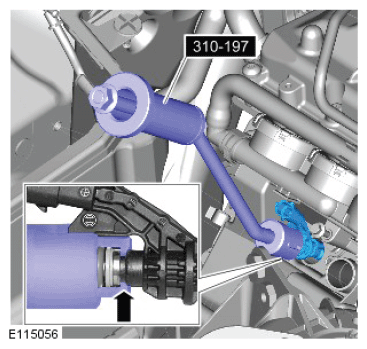

  25. CAUTION:
    • Make sure that the special tool is located correctly to the fuel injector prior to removing the fuel injector.
    • Make sure that the special tool is held square to the fuel injector during removal.
    • Make sure that all open ports are covered to prevent any foreign material ingress.
    G11288078

    Special Tool(s):  310-197

  26. CAUTION: If the fuel injector is being removed without a new component being installed, the fuel injector clamp must remain with the fuel injector it is removed with.
    G11288042

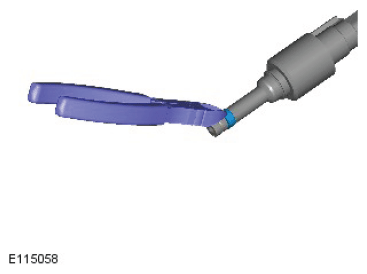

  27. CAUTION:
    • Do not use a knife to remove the Teflon seal as damage could occur to the fuel injector.
    • Do not cut the Teflon seal to deep as damage could occur to the fuel injector.
    • Pinch the Teflon seal to allow the tool to cut the Teflon seal without damaging the fuel injector.
    G11288043
  28. CAUTION: Do not use any sharp tools to remove the O-ring seal as damage could occur to the fuel injector.
    G11288044
