Removal And Installation: Installation
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
Install new O-ring seals.
Install new Teflon seals.
Special Tool(s): 310-198
Special Tool(s): 310-199
-
CAUTION: If the original fuel injector is being installed, the original fuel injector clamp must installed with the fuel injector it was removed with.
-
CAUTION: If a new cylinder head has been installed then the special tool 310-200-02 without the thread must be used to install the fuel rail.

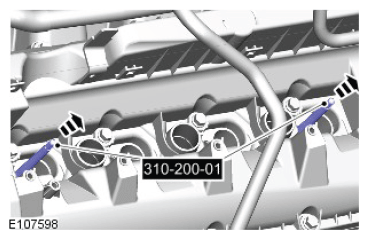

Special Tool(s): 310-200-01, 310-200-02
-
CAUTION:
- Make sure that the area around the open fuel injector ports are clean and free of foreign material and lubricant prior to installing the fuel injector.
- When Installing the fuel injector(s), make sure that the Teflon seal is clean and free of foreign material and lubricant.
-
CAUTION:
- If new fuel injectors are installed, a new injector clamp must be installed
- Make sure that the fuel injector is aligned and installed into the fuel rail correctly, as noted in the removal step.
- Tighten the fuel rail retaining bolts a turn at a time until the correct torque is achieved.
NOTE: Lubricate the fuel injector O-ring seals with clean engine oil.Torque Specifcation: 20 Nm
-
NOTE: LH shown RH similar.
Special Tool(s): 310-200-01, 310-200-02
-
NOTE: LH shown RH similar.
Torque Specifcation: 20 Nm
-
NOTE:
- LH shown RH similar.
- Tighten in the sequence indicated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Torque Specifcations:
Bolt 2 30 Nm
Bolt 3 30 Nm
Bolt 1 30 Nm
Bolt 4 30 Nm

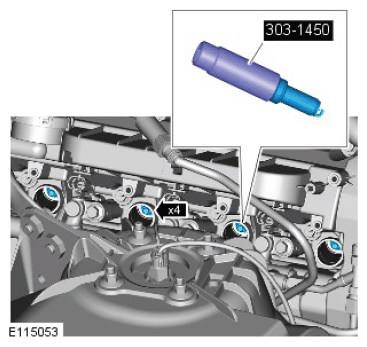

Special Tool(s): 303-1450
Torque Specifcation: 20 Nm
-
NOTE: LH shown RH similar.
Torque Specifcation: 7 Nm
-
NOTE: LH shown RH similar.
-
CAUTION: Lubricate only the union threads with clean engine oil.NOTE:
- Engine shown removed for clarity.
- Install the bolt and unions finger tight before final tightening.
- Remove and discard the blanking caps.
- Lower the vehicle.
-
NOTE:
- Do not tighten at this stage.
- Remove and discard the blanking caps.
-
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
-

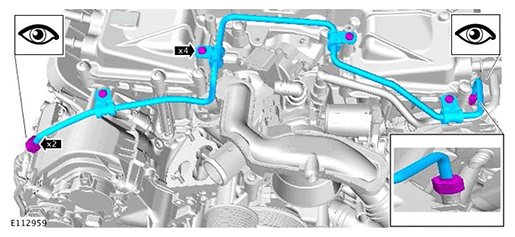

NOTE: Engine shown removed for clarity.
Torque Specifcations:
Unions (1) 21 Nm
M6 (2) 11 Nm
M8 (3) 25 Nm
M5 nut (4) 6 Nm
-
NOTE: Engine shown removed for clarity.
Torque Specifcation: 21 Nm
-
NOTE: Engine shown removed for clarity.
Torque Specifcation:
M10 29 Nm
M6 11 Nm
-
NOTE: Engine shown removed for clarity.
- Lower the vehicle.
-
NOTE:
- Lubricate the union threads with clean engine oil.
- Do not tighten at this stage.
- Remove and discard the blanking caps.
Torque Specifcations:
Unions 21 Nm
Bolts 8 Nm
Torque Specifcation: 21 Nm
- Refer to: Air Cleaner Outlet Intermediate Pipe RH (Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal and Installation).

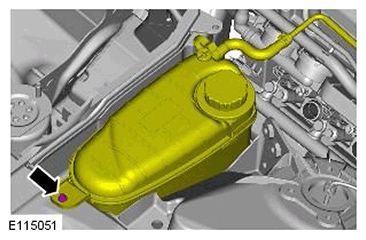

Torque Specifcation: 10 Nm
Torque Specifcation: 45 Nm

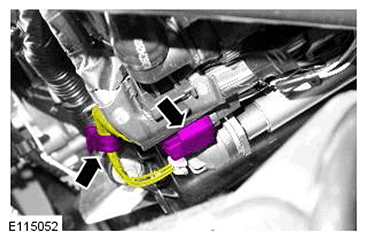

- Refer to: Cowl Vent Screen (Front End Body Panels, Removal and Installation).
- Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
