Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Make sure that tools and equipment are clean, free of foreign material and lubricant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions (General Information, Description and Operation).
  2. Refer to: Fuel System Pressure Release - V8 5.0L Petrol/V8 S/C 5.0L Petrol (Fuel System - General Information, General Procedures).
  3. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  4. Refer to: Fuel Injection Component Cleaning  (Fuel Charging and Controls - V8 S/C 5.0L Petrol, General Procedures).
  5. Refer to: Cowl Vent Screen (Front End Body Panels, Removal and Installation).
  6. G11288023

    Torque Specifcation: 45 Nm

  7. G11541488
  8. CAUTION: Be prepared to collect escaping fluids.
    G11288194
  9. G11288195
  10. CAUTION: Be prepared to collect escaping fluids.
    G11288196
  11. CAUTION: Be prepared to collect escaping fluids.
    G11288197
  12. Refer to: Air Cleaner Outlet Intermediate Pipe RH (Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal and Installation).
  13. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11286716
  14. G11285152
  15. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11285153
  16. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  17. NOTE: Engine shown removed for clarity.
    G11285155
  18. NOTE: Engine shown removed for clarity.
    G11285201
  19. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    NOTE: Engine shown removed for clarity.
    G11285157
  20. Lower the vehicle.
  21. G11288037
  22. G11288038
  23. NOTE: RH shown LH similar.
    G11288039

    Special Tool(s):  303-1450

  24. CAUTION: Make a note of the fuel injector clamp alignment to the fuel rail prior to removal.
    G11288040

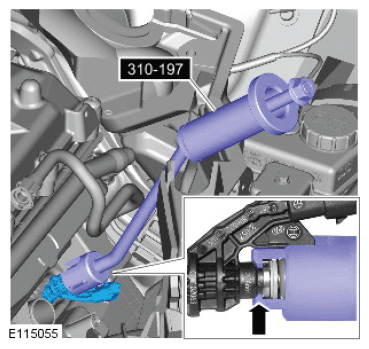

  25. CAUTION:
    • Make sure that the special tool is located correctly to the fuel injector prior to removing the fuel injector.
    • Make sure that the special tool is held square to the fuel injector during removal.
    • Make sure that all open ports are covered to prevent any foreign material ingress.
    G11288041

    Special Tool(s):  310-197

  26. CAUTION: If the fuel injector is being removed without a new component being installed, the fuel injector clamp must remain with the fuel injector it is removed with.
    G11288042
  27. CAUTION:
    • Do not use a knife to remove the Teflon seal as damage could occur to the fuel injector.
    • Do not cut the Teflon seal to deep as damage could occur to the fuel injector.
    • Pinch the Teflon seal to allow the tool to cut the Teflon seal without damaging the fuel injector.
    G11288043
  28. CAUTION: Do not use any sharp tools to remove the O-ring seal as damage could occur to the fuel injector.
    G11288044
