Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mixtures are always present and may ignite. Failure to follow these instructions may result in personal injury.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions (General Information, Description and Operation).
  2. Refer to: Fuel System Pressure Release - V8 5.0L Petrol/V8 S/C 5.0L Petrol (Fuel System - General Information, General Procedures).
  3. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  4. Refer to: Engine Cover - V8 5.0L Petrol/V8 S/C 5.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
  5. Refer to: Engine Oil Draining and Filling (Engine - V8 S/C 5.0L Petrol, General Procedures).
  6. Refer to: Fuel Injection Component Cleaning  (Fuel Charging and Controls - V8 S/C 5.0L Petrol, General Procedures).
  7. G11288287
  8. CAUTION: Be prepared to collect escaping fluids.
    G11288288
  9. Refer to: Air Cleaner Outlet Intermediate Pipe RH (Intake Air Distribution and Filtering - V8 5.0L Petrol, Removal and Installation).
  10. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11286716

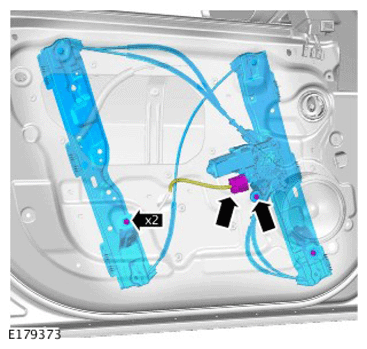

  11. G11332212
  12. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11288291
  13. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  14. Refer to: Engine Mount RH (Engine - V8 5.0L Petrol, Removal and Installation).

  15. Refer to: Generator (Generator and Regulator - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

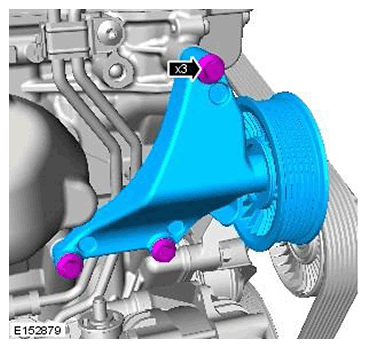

  16. NOTE: Engine shown removed for clarity.
    G11541602
  17. NOTE: Engine shown removed for clarity.
    G11285201
  18. NOTE: Engine shown removed for clarity.
    G11288126
  19. CAUTION: Make sure that all openings are sealed. Use new blanking caps.
    G11288127
  20. CAUTION:
    • Remove and discard the high-pressure fuel supply lines.
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    NOTE: Engine shown removed for clarity.
    G11285157

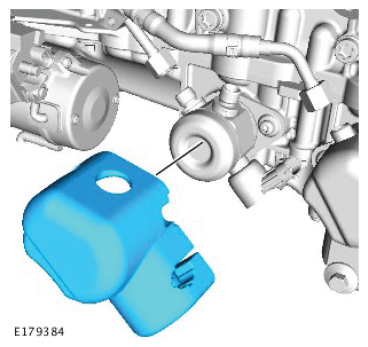

  21. G11288129

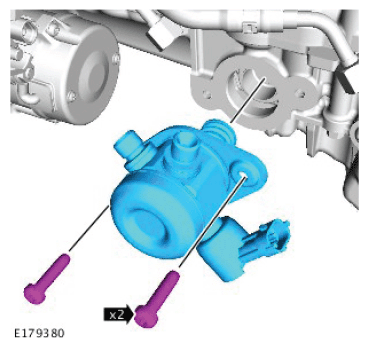

  22. CAUTION: Be prepared to collect escaping fluids.
    G11288130

    Loosen the Torx screws a turn each at a time.

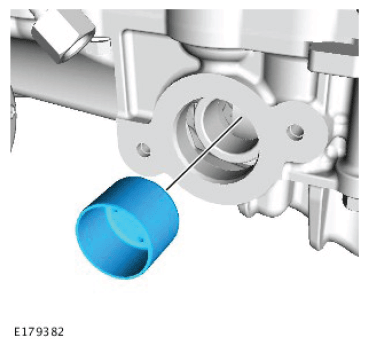

CAUTION: Be prepared to collect escaping fluids.
G11288131
