Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Lubricate the fuel rail high-pressure fuel pump bucket with clean engine oil.
    G11288131
  2. CAUTION: Tighten the Torx screws a turn at a time until the correct torque is achieved.
    NOTE: Lubricate the fuel rail high-pressure fuel pump O-ring seal with clean engine oil.
    G11288130

    Install the high-pressure fuel pump.

    Torque Specifcation: 12 Nm

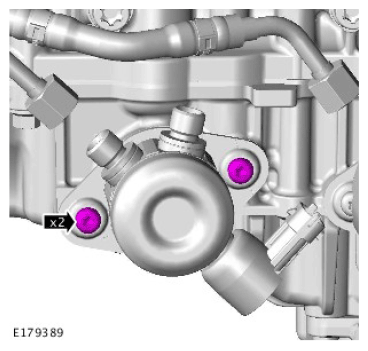

  3. G11288134

    Loosen the Torx screws half a turn each.

  4. G11288129
  5. CAUTION:
    • Install new high-pressure fuel supply lines.
    • Lubricate the high-pressure fuel supply line unions with clean engine oil.
    NOTE:
    • Engine shown removed for clarity.
    • Remove and discard the blanking caps.

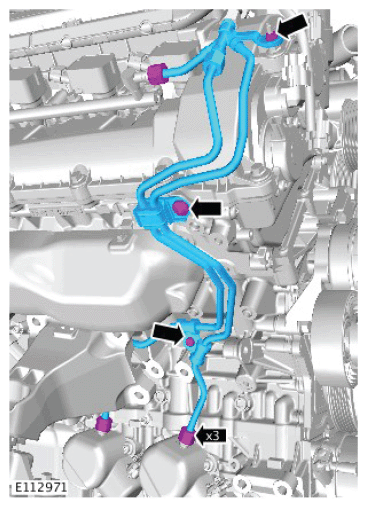

    G11288136

    Install the high-pressure fuel supply lines, tighten the bolts and unions finger tight at stage.

  6. CAUTION: Care must be taken when positioning the fuel rail high-pressure fuel pump cover to one side.

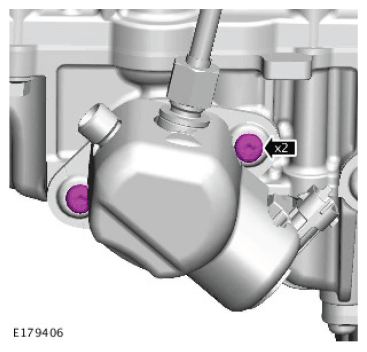

    G11288137

    Tighten the Torx screws.

    Torque Specifcation: 12 Nm

  7. Lower the vehicle.
  8. NOTE: Engine shown removed for clarity.
    G11285197

    Torque Specifcations:

    Unions (1) 21 Nm

    M6 (2) 11 Nm

    M8 (3) 25 Nm

    M5 nut (4) 6 Nm

  9. NOTE: Remove and discard the blanking caps.
    G11288127

    Torque Specifcations:

    Unions 21 Nm

    Bolt 12 Nm

  10. NOTE: Install the bolt and unions finger tight before final tightening.
    G11288126

    Torque Specifcations:

    Unions 21 Nm

    M6 11 Nm

  11. NOTE: Engine shown removed for clarity.
    G11285201

    Torque Specifcations:

    M10 29 Nm

    M6 11 Nm

  12. G11288124

    Torque Specifcation: 25 Nm

  13. Refer to: Generator (Generator and Regulator - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

  14. Refer to: Engine Mount RH (Engine - V8 5.0L Petrol, Removal and Installation).
  15. G11288122
  16. NOTE:
    • Lubricate the union threads with clean engine oil.
    • Do not tighten at this stage.
    • Remove and discard the blanking caps.
    G11286716
  17. G11286716

    Torque Specifcations:

    Unions 21 Nm

    Bolts 8 Nm

  18. Refer to: Air Cleaner Outlet Intermediate Pipe RH (Intake Air Distribution and Filtering - V8 5.0L Petrol, Removal and Installation).
  19. G11288287
  20. G11288288
  21. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  22. Refer to: Engine Oil Draining and Filling (Engine - V8 S/C 5.0L Petrol, General Procedures).
  23. Refer to: Engine Cover - V8 5.0L Petrol/V8 S/C 5.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
