Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mixtures are always present and may ignite. Failure to follow these instructions may result in personal injury.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions .
  2. Refer to: Fuel System Pressure Release - V8 5.0L Petrol/V8 S/C 5.0L Petrol .
  3. Refer to: Battery Disconnect and Connect .
  4. Refer to: Engine Cover - V8 5.0L Petrol/V8 S/C 5.0L Petrol .
  5. Refer to: Engine Oil Draining and Filling .
  6. Refer to: Fuel Injection Component Cleaning .

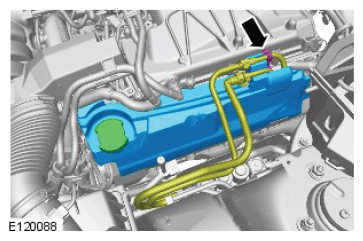

  7. G11288287
  8. CAUTION: Be prepared to collect escaping fluids.

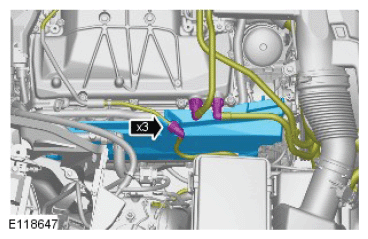

    G11288288
  9. Refer to: Air Cleaner Outlet Intermediate Pipe RH .
  10. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11286716

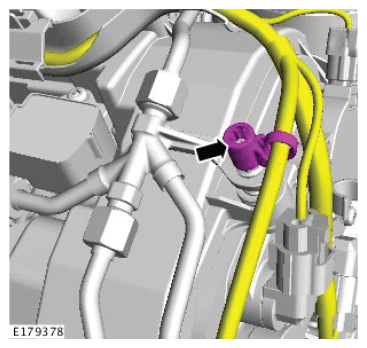

  11. G11288122
  12. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.

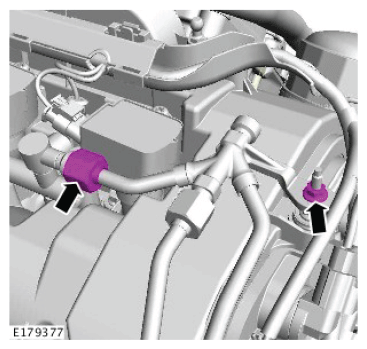

    G11288291
  13. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  14. Refer to: Engine Mount RH .

  15. Refer to: Generator .

  16. NOTE: Engine shown removed for clarity.

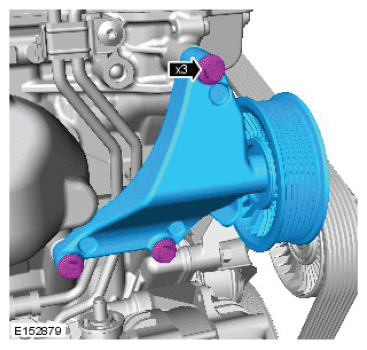

    G11288124
  17. NOTE: Engine shown removed for clarity.
    G11285201
  18. NOTE: Engine shown removed for clarity.
    G11288126
  19. CAUTION: Make sure that all openings are sealed. Use new blanking caps.

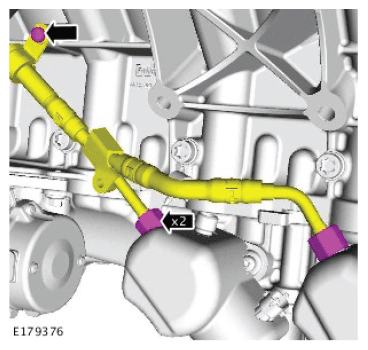

    G11288127
  20. CAUTION:
    • Remove and discard the high-pressure fuel supply lines.
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    NOTE: Engine shown removed for clarity.

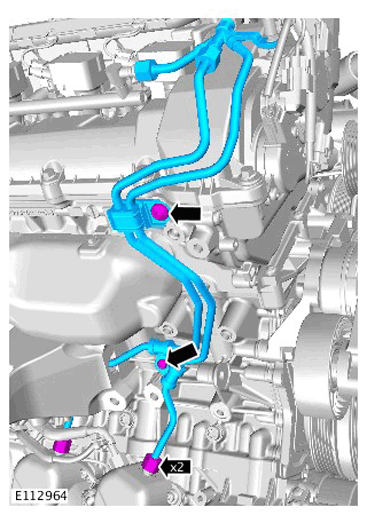

    G11285157

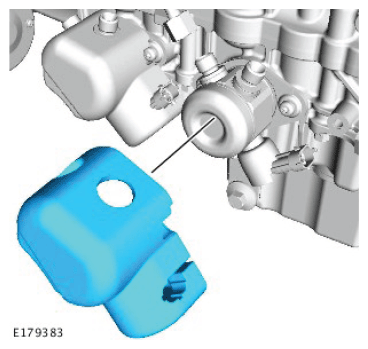

  21. G11288158
  22. CAUTION: Be prepared to collect escaping fluids.

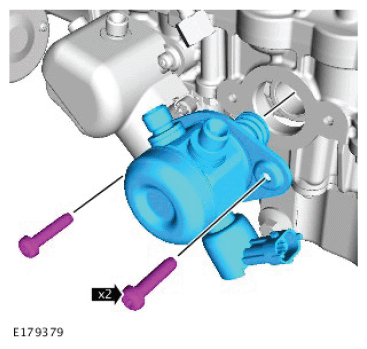

    G11288159

    Loosen the Torx screws a turn each at a time.

  23. CAUTION: Be prepared to collect escaping fluids.

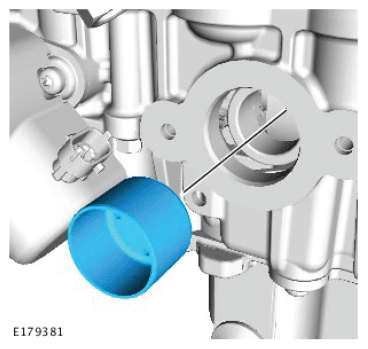

    G11288160
