Fuel Rails And Crossover Tube
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.

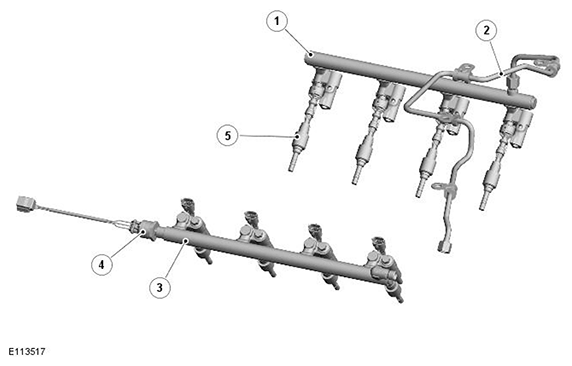

| ITEM | DESCRIPTION |
|---|---|
| 1 | LH fuel rail |
| 2 | Crossover tube |
| 3 | RH fuel rail |
| 4 | FRP sensor |
| 5 | Fuel injector |
The fuel rails and crossover tube are made from stainless steel. Bolts attach each fuel rail to the related cylinder head. The crossover tube connects the front high pressure line to the LH fuel rail, which ensures there is equal pressure in the two fuel rails. Four P-clips attach the crossover tube to the intercooler-tank top.
The rear of the RH fuel rail incorporates a threaded boss for installation of the FRP sensor.
