Control Diagram

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.

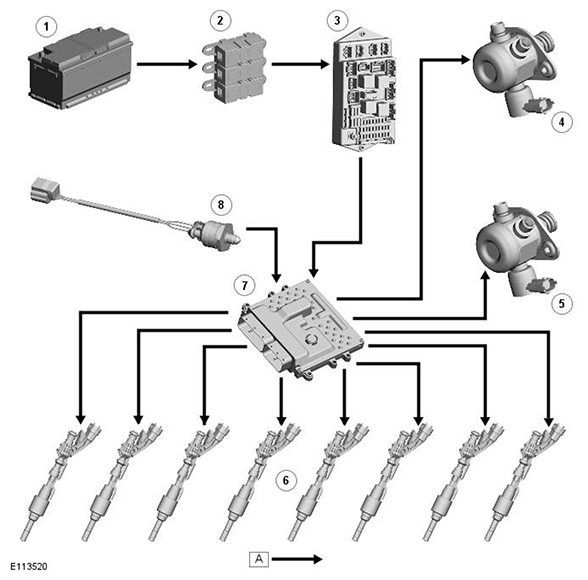

G11541476
ITEM DESCRIPTION
1 Battery
2 BJB (battery junction box) (175 A megafuse)
3 CJB (central junction box)
4 No. 1 HP fuel pump
5 No. 2 HP fuel pump
6 Fuel injectors
7 ECM
8 FRP sensor
