Component Location

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.

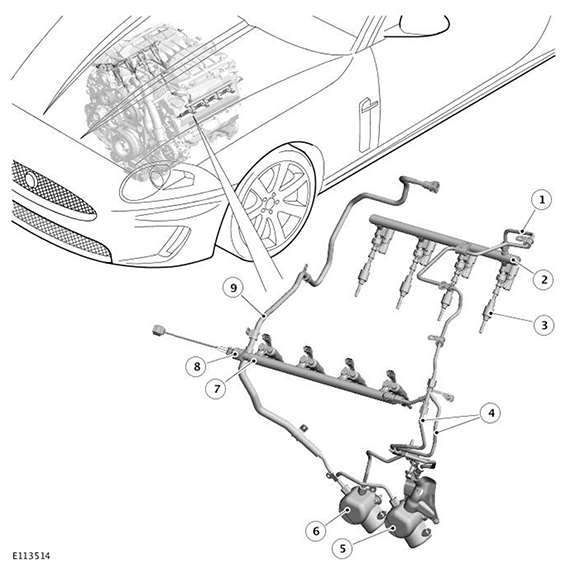

G11541469
ITEM DESCRIPTION
1 Crossover tube
2 LH (left hand) fuel rail
3 Fuel injector
4 HP (high pressure) fuel lines
5 HP fuel pump - No. 1 (Front)
6 HP fuel pump - No. 2 (Rear)
7 RH (right hand) fuel rail
8 FRP (fuel rail pressure) sensor
9 LP (low pressure) fuel lines
