Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect
    2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  2. Raise and support the vehicle.

  3. Refer to: Supercharger Removal and Installation

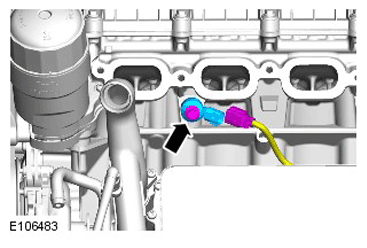

  4. G11284990

    Torque Specification: 20 Nm
