Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Engine Cover - 5.0L

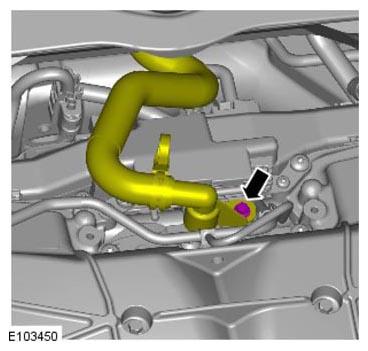

  2. G11293316

    Torque Specification: 10 Nm

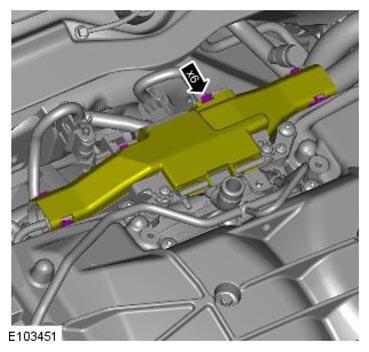

  3. G11293050

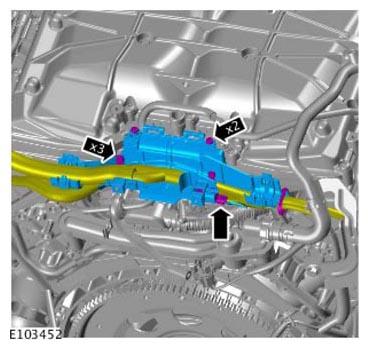

  4. G11293051

    Torque Specification: 10 Nm

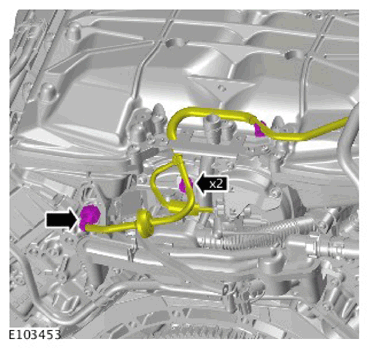

  5. G11298088

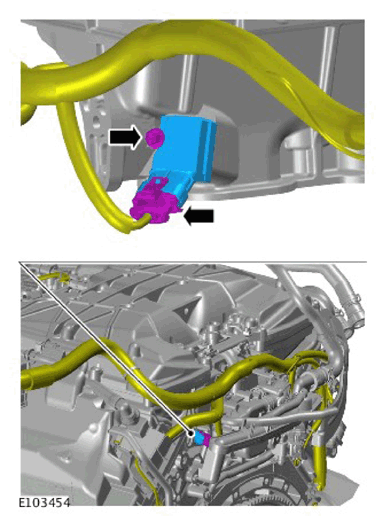

  6. G11298089

    Torque Specification: 5 Nm
