Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

All vehicles

    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Raise and support the vehicle.

    Vehicles with supercharger

  2. Refer to: Thermostat Housing Removal And Installation V8 S/C 5.0L PETROL =

    Vehicles without supercharger

  3. Refer to: Thermostat Housing Removal And Installation V8 N/A 5.0L PETROL

    All vehicles

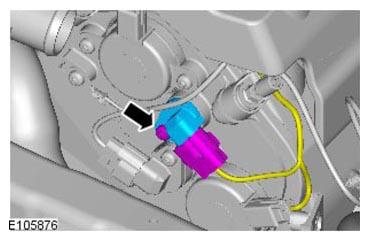

  4. G11293289
    • Torque Specification: 10 Nm
