Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Fuel System Pressure Release - 5.0L
  2. Refer to: Engine Cover - 5.0L
    3. WARNING: Be prepared to collect escaping fluids.

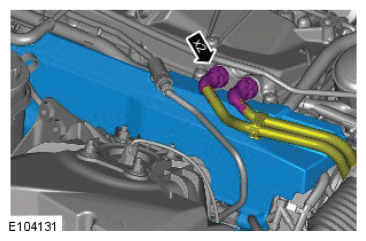

  3. G11288197
    4. WARNING: Be prepared to collect escaping fluids.
    CAUTION: Make sure that all openings are sealed. Use new blanking caps.

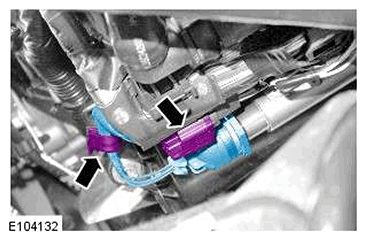

  4. G11542156

    Torque Specification: 32 Nm
