Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Raise and support the vehicle.

  2. Refer to: Engine Cover - V8 5.0L Petrol/V8 S/C 5.0L Petrol
  3. Refer to: Cooling System Partial Draining and Vacuum Filling

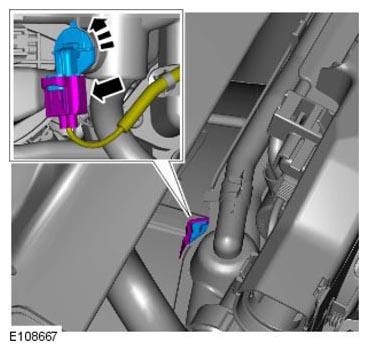

  4. G11293301

    Lift the tang and rotate the engine coolant temperature (ECT) sensor counter-clockwise.
