Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.

  1. Refer to: Battery Disconnect and Connect

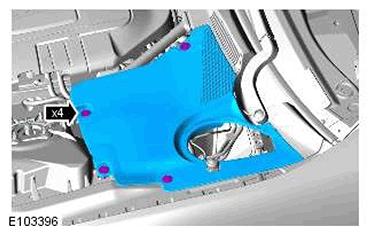

  2. G11542143
  3. G11508555

    Torque Specification: 10 Nm

  4. G11508556

    Torque Specification: 10 Nm

  5. G11508557

    Torque Specification: 6 Nm

  6. G11508558

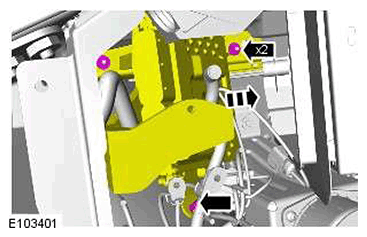

  7. G11542148

    Torque Specification: 7 Nm

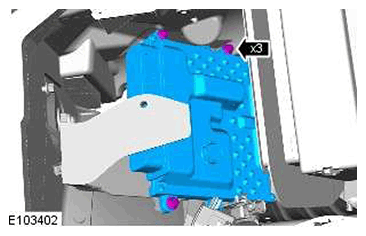

  8. G11542149

    Torque Specification: 9 Nm
