Component Location - Sheet 2 Of 3

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.

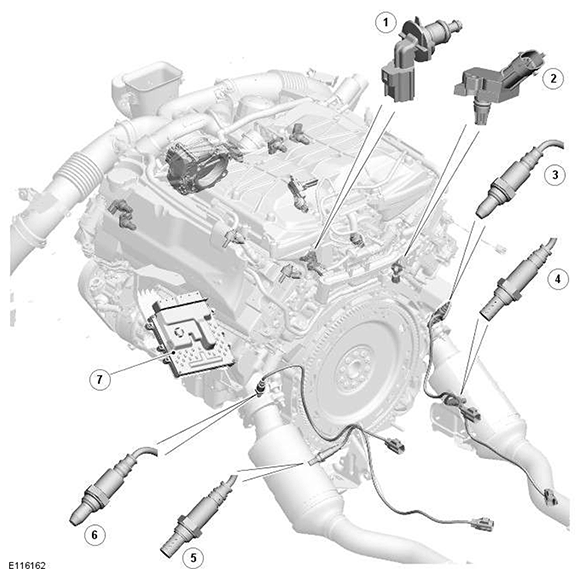

G11542107
ITEM DESCRIPTION
1 ECT sensor (ECT 1)
2 MAPT (manifold absolute pressure and temperature) sensor
3 Upstream HO2S (heated oxygen sensor)
4 Downstream HO2S
5 Downstream HO2S
6 Upstream HO2S
7 ECM (engine control module)
