Component Location - Sheet 1 Of 3

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.

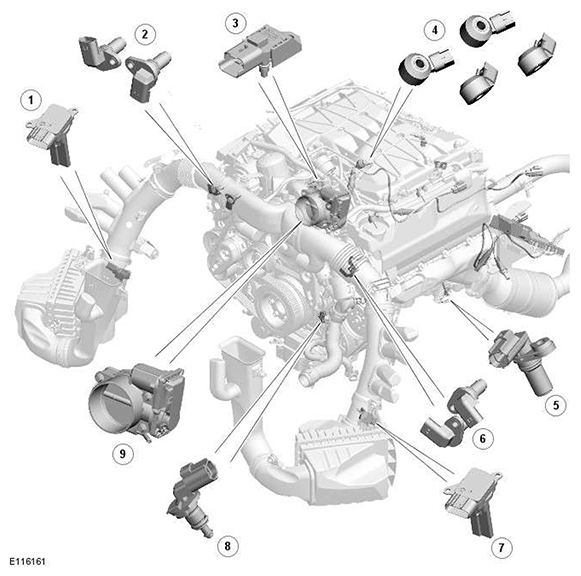

G11542106
ITEM DESCRIPTION
1 MAFT (mass air flow and temperature) sensor
2 CMP (camshaft position) sensors
3 MAP (manifold absolute pressure) sensor
4 Knock sensors
5 CKP (crankshaft position) sensor
6 CMP sensors
7 MAFT sensor
8 ECT (engine coolant temperature) sensor (ECT 2)
9 Electronic throttle
