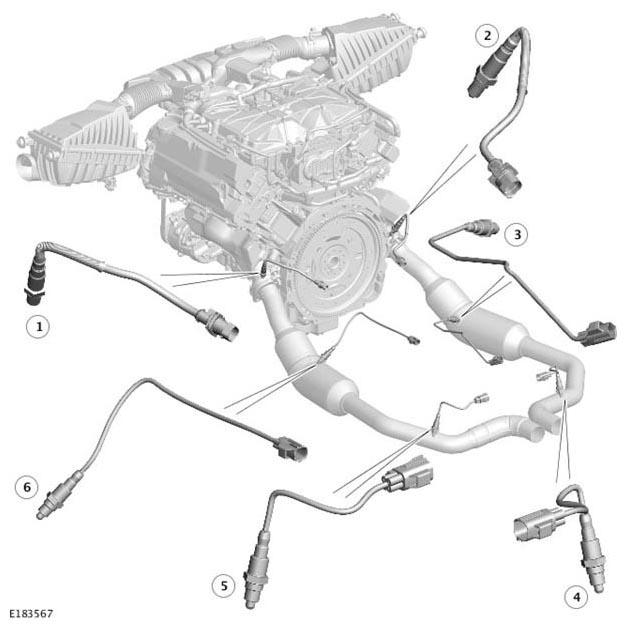

Heated Oxygen Sensor (HO2S) location

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2014 Jaguar XKR-S, 2014 Jaguar XKR, and 2013 Jaguar XKR-S. However, it is still accessible from the selected car via links, so may be relevant.
G11293287
ITEM DESCRIPTION
1 Heated Oxygen Sensor (HO2S) - Pre catalyst - Bank 2 sensor 1
2 Heated Oxygen Sensor (HO2S) - Pre catalyst - Bank 1 sensor 1
3 Heated Oxygen Sensor (HO2S) - Mid catalyst - Bank 1 sensor 2
4 Heated Oxygen Sensor (HO2S) - Post catalyst - Bank 1 sensor 3
5 Heated Oxygen Sensor (HO2S) - Post catalyst - Bank 2 sensor 3
6 Heated Oxygen Sensor (HO2S) - Mid catalyst - Bank 2 sensor 2
