Timing Drive Components Assembly Part Number: Tsubaki Timing Drive: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR175, 2011 Jaguar XKR, and 2010 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Check all timing components for wear and install new components if required.
NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.

Some illustrations may show the engine removed for clarity.

  1. Disconnect the battery ground cable.

    Refer to: BATTERY DISCONNECT AND CONNECT .

    2. WARNING: Make sure to support the vehicle with axle stands.
  2. Raise and support the vehicle.
  3. Refer to: Timing Cover  .
    4. CAUTION: An M16 washer must be used to prevent damage to the crankshaft on installation.
  4. Install the crankshaft pulley bolt.

    Torque: 20 Nm

    GJ0012195
  5. See figure.
    G00531483
    6. CAUTION: Only rotate the crankshaft clockwise.
  6. Install the special tool.
    GJ0012164

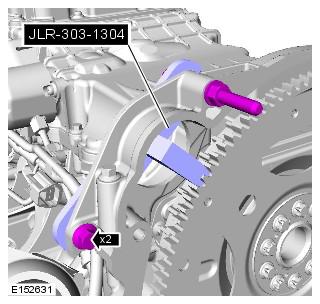

    • Install the special tool.
    • Special Tool(s): JLR-303-1304
    G00559450
  8. Remove the crankshaft pulley bolt.
    GJ0012195
  9. See figure.
    GJ0013989
  10. See figure.
    G00559421
  11. See figure.
    G00559422
  12. Remove the variable valve timing (VVT) unit bolts.
    GJ0012168
    13. CAUTION: If the variable valve timing (VVT) units are knocked or dropped then new VVT(s) must be installed.

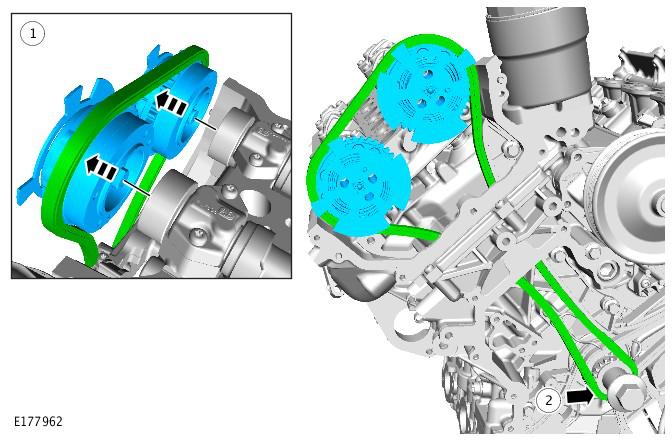

  13. Remove the timing chain and VVT units.
    G00559423
  14. Remove the timing chain tensioner.
    GJ0013991
  15. See figure.
    G00559424
  16. See figure.
    G00559425
  17. See figure.
    GJ0012172

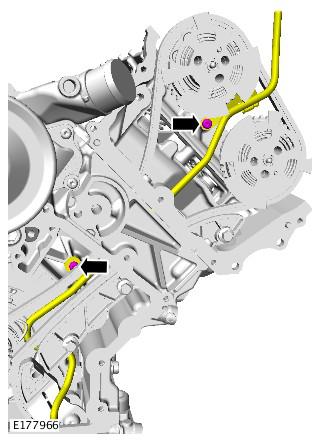

  18. Release the oil drain tube.
    G00559445
    19. CAUTION: If the VVT is knocked or dropped then new VVT(s) must be installed.

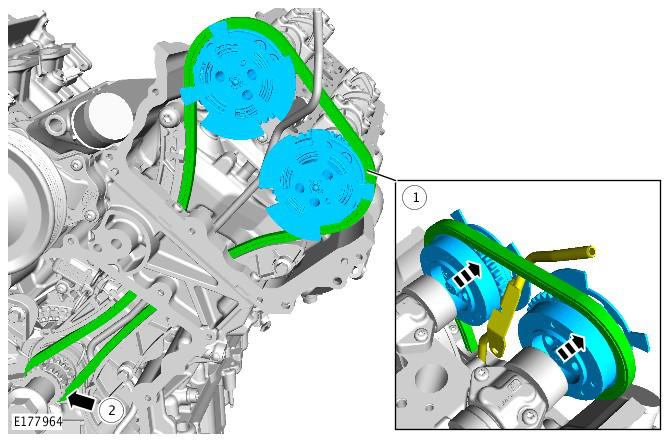

  19. Remove the timing chain with the VVT units.
    G00559427
  20. See figure.
    GJ0012174
    21. CAUTION: Discard the friction washers.
  21. See figure.
    GJ0012175
