Timing Chain Tensioner - Engine Set: Installation

WARNING: This page is about a different car, the 2011 Jaguar XKR175, 2011 Jaguar XKR, and 2010 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION:

    Use only a plastic scraper when removing the sealing material.

    Make sure that the mating faces are clean and free of foreign material.

    Make sure that the Land Rover approved cleaning fluid (Loctite 7063) is used to clean the mating faces.

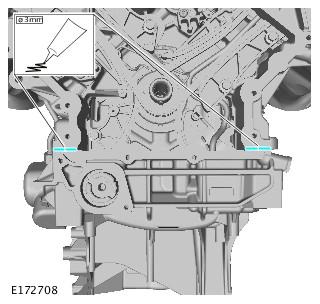

  1. Apply RTV sealant (Loctite 5901G) to the areas shown.
    G00559626
    2. CAUTION: Make sure that a new component is installed.
    NOTE: Tighten the retaining bolts in the indicated sequence.
  2. Tighten the lower timing cover bolts within 7 minutes.

    Torque: 12 Nm

    G00559627

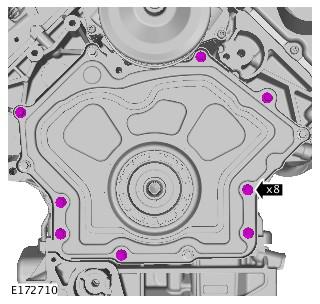

  3. Tighten the lower timing cover bolts within 7 minutes.

    Torque: 12 Nm

    G00559628
    4. NOTE: Lubricate the O-ring seal with clean engine oil.
  4. Torque: 12 Nm
    G00559607

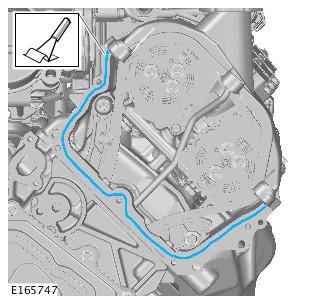

    5. CAUTION:

    Use only a plastic scraper when removing the sealing material.

    Make sure that the mating faces are clean and free of foreign material.

    Make sure that the Land Rover approved cleaning fluid (Loctite 7063) is used to clean the mating faces.

  5. See figure.
    G00559629
  6. Apply RTV sealant (Loctite 5901G) to the areas shown, install the component, and tighten the bolts within 7 minutes.
    G00559630

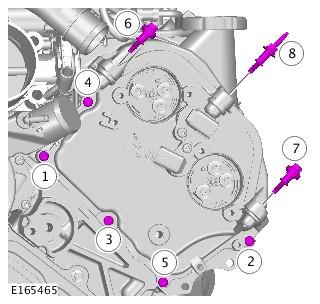

    7. CAUTION: Take extra care not to damage the seal when installing the component.
  7. See figure.
    G00559631
    8. NOTE: Tighten the retaining bolts in the indicated sequence.
  8. Torque: 12 Nm
    G00559632
  9. Torque: 12 Nm
    G00559603
  10. Torque: 10 Nm
    G00559602
    11. CAUTION: Using a suitable tool, lock the component.
  11. Torque: 25 Nm
    G00559601

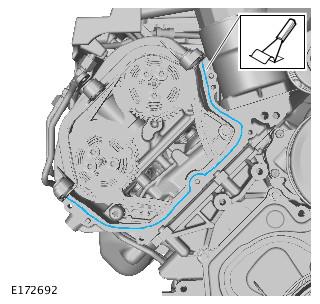

    12. CAUTION:

    Use only a plastic scraper when removing the sealing material.

    Make sure that the mating faces are clean and free of foreign material.

    Make sure that the Land Rover approved cleaning fluid (Loctite 7063) is used to clean the mating faces.

  12. See figure.
    G00559632
  13. Apply RTV sealant (Loctite 5901G) to the areas shown, install the component, and tighten the bolts within 7 minutes.
    G00559630

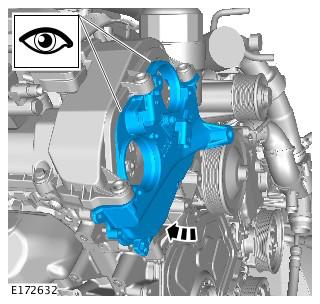

  14. Take extra care not to damage the seal when installing the component.
    G00559633
    15. NOTE: Tighten the retaining bolts in the indicated sequence.
  15. Torque: 12 Nm
    G00559634
  16. Torque: 12 Nm
    G00559594

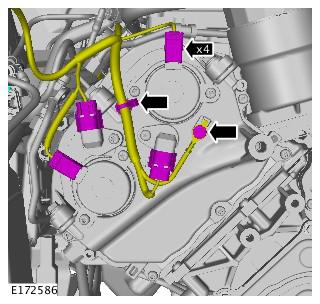

  17. Torque: 10 Nm
    G00559635
  18. Torque: 48 Nm
    G00559593
  19. See figure.
    G00559411
  20. See figure.
    G00559410
    21. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  21. See figure.
    G00559409
  22. Torque: 10 Nm
    GJ0012924
  23. See figure.
    GJ0012948
    24. CAUTION:

    Lubricate only the union threads with clean engine oil.

    Only tighten the bolts finger-tight at this stage.

    NOTE: Remove and discard the blanking caps.
  24. See figure.
    G00559403
  25. Torque:

    Unions (1) 21 Nm

    M6 (2) 11 Nm

    M8 (3) 25 Nm

    G00559382

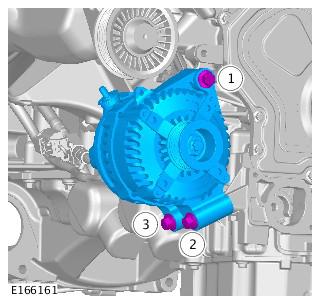

  26. Torque: 48 Nm
    G00559636
  27. See figure.
    G00559398
  28. Torque: 12 Nm
    G00559397

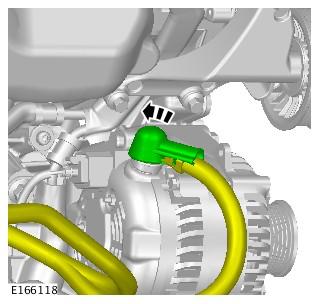

  29. See figure.
    G00559637

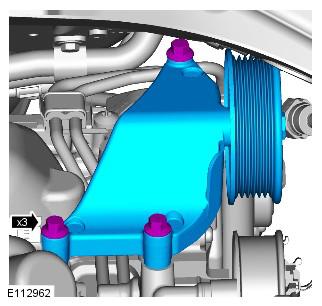

  30. Torque: 25 Nm
    G00559638
  31. See figure.
    G00559395
  32. Refer to: AIR DEFLECTOR .

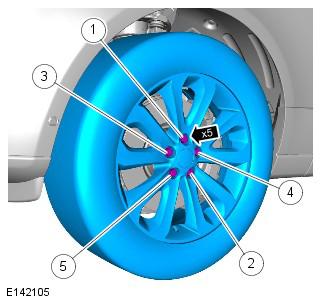

    33. WARNING: The wheel and tire assembly will be heavy.
    CAUTION: Apply a small amount of grease to the hub and wheel mating surfaces before installation. Make sure the grease does not come into contact with the vehicles braking components and the wheel stud threads. Failure to follow these instructions may result in personal injury.
    NOTE:

    Make sure that the component is installed to the noted removal position.

    Left hand illustration shown, right hand similar.

  33. Install the RH front wheel and tire.

    Torque: 140 Nm

    G00559639
  34. Install the FEAD belt.

    Torque: 25 Nm

    G00559394
  35. Torque: 48 Nm
    G00559393
  36. Torque: 48 Nm
    G00559392
  37. Refer to: Crankshaft Pulley  .

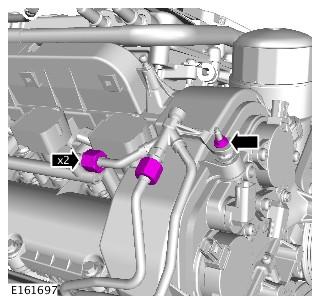

  38. Torque:

    Unions 21 Nm

    M5 nut 6 Nm

    G00559640
  39. See figure.
    G00559390

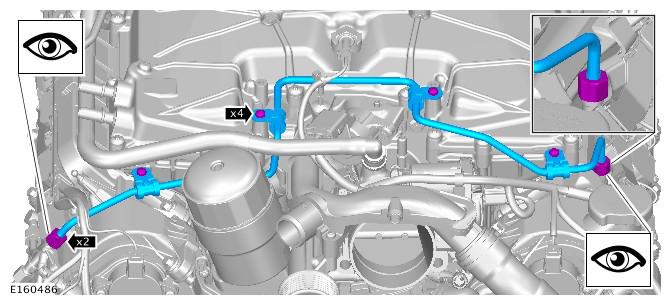

    40. CAUTION:

    Remove and discard the blanking caps.

    Only tighten the bolts finger-tight at this stage.

  40. See figure.
    G00559641
    41. CAUTION: This fuel pipe can be re-used, inspect for signs of damage. Renew if necessary.
  41. Torque:

    Unions 21 Nm

    Bolts 12 Nm

    G00559641
  42. See figure.
    GJ0013025
  43. See figure.
    G00559389
  44. See figure.
    G00559388
  45. See figure.
    G00559387
  46. See figure.
    G00559386

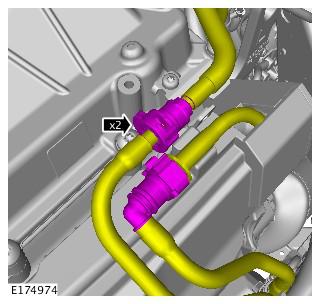

    47. NOTE: Remove and discard the blanking caps.
  47. See figure.
    G00559415

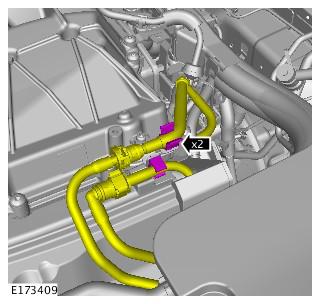

  48. See figure.
    G00559416
  49. See figure.
    G00559383
  50. See figure.
    GJ0025477
  51. Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR .
  52. Refer to: COOLING SYSTEM PARTIAL DRAINING, FILLING AND BLEEDING V8 S/C 5.0L PETROL C .
  53. Connect the battery ground cable.

    Refer to: BATTERY DISCONNECT AND CONNECT .
