Oil Pan Extension: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR175, 2011 Jaguar XKR, and 2010 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Removal steps in this procedure may contain installation details.

Some variation in the illustrations may occur, but the essential information is always correct.

  1. Refer to: BATTERY DISCONNECT AND CONNECT .
    2. WARNING: Make sure to support the vehicle with axle stands.
  2. Raise and support the vehicle.
  3. Refer to: Crankshaft Pulley  .
  4. Refer to: Removal  .
    5. CAUTION:

    The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.

    Make sure that no components fall off during removal.

    NOTE:

    Make sure that the crankshaft is not rotated.

    Make sure the crankshaft and flexplate mating faces are clean before installation.

  5. See figure.
    GJ0012815
  6. See figure.
    GJ0022953
  7. See figure.
    GJ0013136
  8. See figure.
    GJ0012846
  9. See figure.
    GJ0012845
  10. See figure.
    GJ0022935
  11. See figure.
    GJ0012911
  12. See figure.
    GJ0023233
  13. See figure.
    GJ0012926
  14. See figure.
    GJ0023234
    15. NOTE: The high-pressure fuel pumps are removed from the illustration for clarity.
  15. See figure.
    GJ0012854
    16. CAUTION:

    Be prepared to collect escaping fluids.

    Make sure that all openings are sealed. Use new blanking caps.

  16. See figure.
    GJ0013002
  17. See figure.
    GJ0012850
    18. CAUTION:

    Be prepared to collect escaping fluids.

    Make sure that all openings are sealed. Use new blanking caps.

  18. See figure.
    GJ0012987
  19. See figure.
    GJ0012137
  20. See figure.
    GJ0012849
  21. See figure.
    GJ0012994
    22. CAUTION:

    Be prepared to collect escaping fluids.

    Make sure that all openings are sealed. Use new blanking caps.

    Discard the fuel pipes.

  22. See figure.
    GJ0012988
    23. CAUTION:

    Be prepared to collect escaping fluids.

    Make sure that all openings are sealed. Use new blanking caps.

  23. See figure.
    G00532092
  24. See figure.
    GJ0012855
    25. CAUTION: Be prepared to collect escaping fluids.
  25. See figure.
    GJ0012856
    26. CAUTION: Be prepared to collect escaping fluids.
  26. See figure.
    G00559379
  27. See figure.
    GJ0012858
    28. CAUTION: Be prepared to collect escaping fluids.
  28. See figure.
    GJ0012859
    29. CAUTION: Be prepared to collect escaping fluids.
  29. See figure.
    GJ0012860
    30. CAUTION: Be prepared to collect escaping fluids.
  30. See figure.
    GJ0015956
  31. See figure.
    GJ0022907
  32. See figure.
    GJ0012811
    33. NOTE: Clean the components general area prior to dismantling.
  33. See figure.
    G00531483
    34. CAUTION: Discard the component.

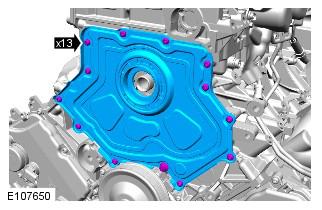

  34. See figure.
    G00559380
  35. See figure.
    GJ0023235
    36. NOTE: Make sure to use the aluminium lug provided on the oil pan extension to lever against.
  36. See figure.
    GJ0012864
    37. NOTE: Do not disassemble further if the component is removed for access only.
  37. See figure.
    GJ0023236
