Oil Cooler: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR175, 2011 Jaguar XKR, and 2010 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: BATTERY DISCONNECT AND CONNECT .
    2. WARNING: Make sure to support the vehicle with axle stands.
  2. Raise and support the vehicle.
  3. Refer to: SUPERCHARGER .
  4. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
  5. See figure.
    GJ0012833
  6. See figure.
    GJ0012834
    7. CAUTION:

    Be prepared to collect escaping oil.

    Be prepared to collect escaping coolant.

  7. Torque: 13 Nm
    GJ0012835
    8. CAUTION: Make sure that these components are installed to the noted removal position.
    NOTE: Install a new gasket.

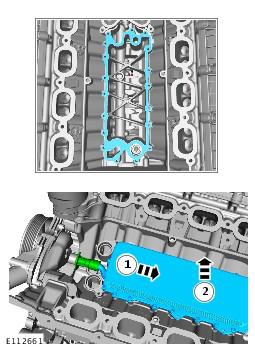

  8. See figure.
    GJ0012836
    9. CAUTION:

    Make sure that these components are installed to the noted removal position.

    Install new o-ring seals

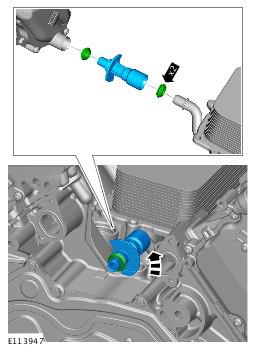

  9. See figure.
    GJ0012837
