Cylinder Head: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR175, 2011 Jaguar XKR, and 2010 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: BATTERY DISCONNECT AND CONNECT .
    2. WARNING: Make sure to support the vehicle with axle stands.
  2. Raise and support the vehicle.
  3. Refer to: Camshaft LH  .
  4. Refer to: Exhaust Manifold LH  .
    5. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  5. See figure.
    GJ0012833
    6. CAUTION: Discard the seals.
  6. See figure.
    GJ0012086

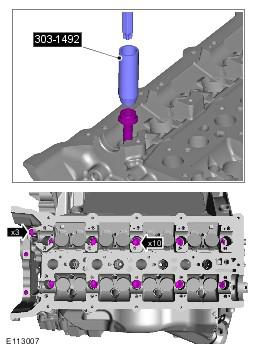

  7. Discard the bolts.
    GJ0012090
    8. NOTE: Discard the gasket.
  8. See figure.
    GJ0012091
