Cylinder Head RH: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR175, 2011 Jaguar XKR, and 2010 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: BATTERY DISCONNECT AND CONNECT .
    2. WARNING: Make sure to support the vehicle with axle stands.
  2. Raise and support the vehicle.
  3. Refer to: Camshaft RH  .
  4. Refer to: Exhaust Manifold RH  .
  5. See figure.
    GJ0012130
    6. CAUTION:

    Discard the seal.

    LH illustration shown, RH is similar.

    NOTE: Engine shown removed for clarity.
  6. See figure.
    GJ0012131
  7. See figure.
    GJ0012082
  8. See figure.
    GJ0012132
    9. NOTE: Clamp the hose to minimize coolant loss.
  9. See figure.
    GJ0023314
    10. NOTE: Clamp the hose to minimize coolant loss.
  10. See figure.
    GJ0012084
  11. See figure.
    GJ0012085
    12. CAUTION: Discard the seals.
  12. See figure.
    GJ0012086
  13. See figure.
    GJ0016203
    14. NOTE: Remove and discard the O-ring seal.
  14. See figure.
    GJ0012135
  15. Discard the gasket.
    GJ0012136
  16. See figure.
    GJ0012137
    17. CAUTION:

    If a new cylinder head has been installed then new tappets must be installed.

    If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.

  17. See figure.
    GJ0012089

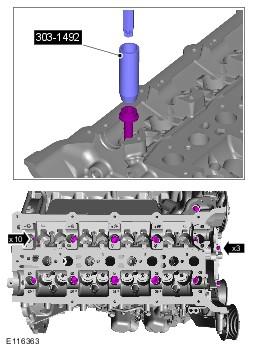

    18. CAUTION: Discard the bolts.
  18. See figure.
    GJ0012138
    19. NOTE: Discard the gasket.
  19. See figure.
    GJ0012139
