Cylinder Head RH: Installation

WARNING: This page is about a different car, the 2011 Jaguar XKR175, 2011 Jaguar XKR, and 2010 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: An acceptable flatness of the cylinder head is 0.1mm.
    NOTE: For cylinder head with distortion above the maximum allowance, the cylinder head material must be measured.

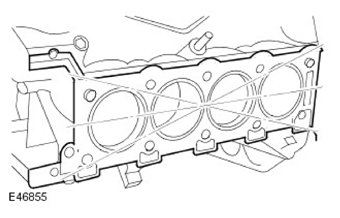

  1. Check cylinder head face for distortion, across the center and from corner to corner.
    G08770454
    2. WARNING: Make sure care is taken when handling the cylinder head gasket.
    CAUTION: The head gasket must be installed over the cylinder block dowels.
    NOTE: Install a new gasket.
  2. See figure.
    GJ0012139
    3. CAUTION: Make sure that new cylinder head bolts are installed.
    NOTE: Tighten the bolts in the indicated sequence.
  3. Torque: 20 Nm
    GJ0012140
    4. NOTE: Tighten the bolts in the indicated sequence.
  4. Torque: 35 Nm
    GJ0012140
    5. NOTE: Tighten the bolts in the indicated sequence.
  5. Torque: 90°
    GJ0012140
    6. NOTE: Tighten the bolts in the indicated sequence.
  6. Torque: 120°
    GJ0012140
  7. Torque: 25 Nm
    GJ0012141
    8. NOTE: Tighten the bolts in the indicated sequence.
  8. Torque: 12 Nm
    GJ0012142
    9. CAUTION:

    If a new cylinder head has been installed then new tappets must be installed.

    If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.

  9. Lubricate the valve tappets with clean engine oil.
    GJ0012089
    10. NOTE: Install a new gasket.
  10. See figure.
    GJ0012136
    11. CAUTION: A new O-ring seal is to be installed.
    NOTE: Install a new engine oil filter.
  11. See figure.
    GJ0012135
  12. Torque: 12 Nm
    GJ0012133
  13. Torque: 20 Nm
    GJ0012082
  14. Torque: 20 Nm
    GJ0012132
    15. CAUTION: Install the new seals.
  15. Torque: 10 Nm
    GJ0012086
    16. CAUTION: Install a new seal.
  16. Torque: 12 Nm
    GJ0012131
  17. Torque: 25 Nm
    GJ0012137
  18. Torque: 25 Nm
    GJ0016203
  19. Refer to: Exhaust Manifold RH  .
  20. Refer to: Camshaft RH  .
  21. Refer to: BATTERY DISCONNECT AND CONNECT .
