Crankshaft Pulley: Installation

WARNING: This page is about a different car, the 2011 Jaguar XKR175, 2011 Jaguar XKR, and 2010 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
    • Apply RTV sealant to the crankshaft pulley keyway.
    • Make sure that the RTV sealant is applied in a 2mm diameter bead.
    • Make sure that when the RTV sealant is applied that the RTV sealant is level with the top of the keyway.
    GJ0012795
    2. CAUTION: Install a new friction washer before installing the crankshaft pulley.
    NOTE:

    Make sure to clean the threads in the end of the crankshaft and that the crank nose is free of any foreign materials.

    Skip to step 11 for engines fitted with early RH thread crankshaft bolt.

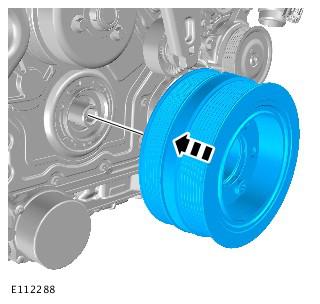

  2. See figure
    G00559170
  3. Install the special tool.
    G00559171
  4. Install the special tool.
    G00559172

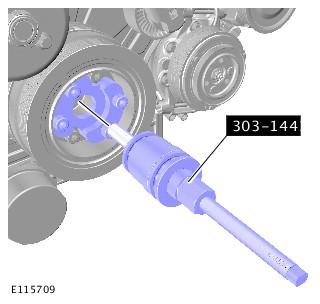

  5. Install the special tool.
    G00559173

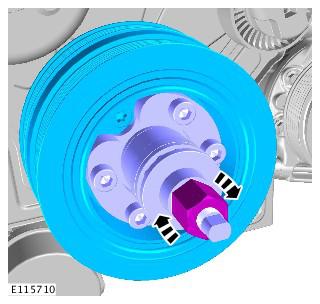

    6. CAUTION: Rotate the crankshaft pulley installation tool anti-clockwise until the pulley is fully located, do not over tighten. Failure to do this may result in damge to the components.
  6. See figure
    G00559174
  7. Remove the special tool.
    G00559175

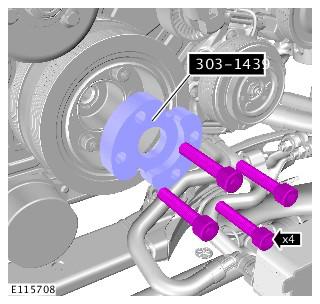

  8. Remove the special tool.
    G00559176

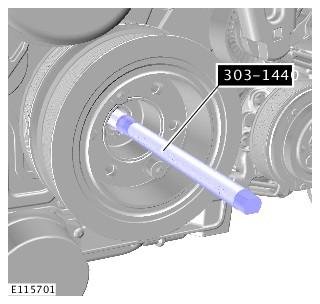

  9. Remove the special tool.
    G00559177

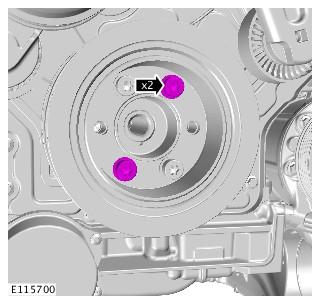

    10. WARNING: Make sure that a new bolt is installed.
    • Apply loctite 270 to the thread of the bolts.
    • Torque: 65 Nm
    G00559178
    11. WARNING: Make sure that a new bolt is installed.
  11. See figure
    G00559179
    12. NOTE: The graphic shows the step for LH thread only, RH thread will be the opposite.
  12. Install the special tool.
    GJ0012804
    13. NOTE: The graphic shows the step for LH thread only, RH thread will be the opposite.
  13. Torque: 25 Nm
    GJ0012805
    14. NOTE: The graphic shows the tool position for LH thread only, RH thread will be the opposite.
  14. Using a suitable stand, support the special tool.
    GJ0012810
    15. NOTE: The graphic shows the step for LH thread only, RH thread will be the opposite.
  15. Torque: 200 Nm
    GJ0012807

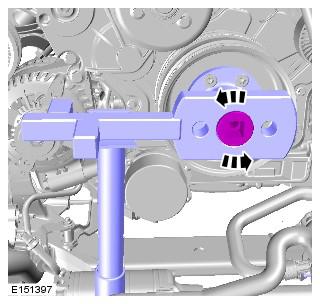

    16. NOTE:

    The graphic shows the step for LH thread only, RH thread will be the opposite.

    The use of a torque multiplyer capable of 600Nm will be required.

    Make sure that the socket is turned through 270 degrees not the torque wrench.

  16. Torque: 270°
    G00559180

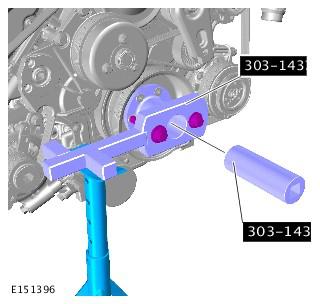

  17. Remove the special tools.
    G00559181

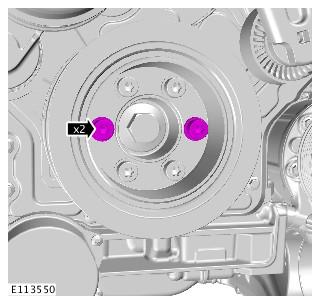

    18. WARNING: Make sure that a new bolt is installed.
  18. Apply loctite 270 to the thread of the bolts.

    Torque: 65 Nm

    G00559182
  19. See figure.
    GJ0012897
  20. See figure.
    GJ0012896

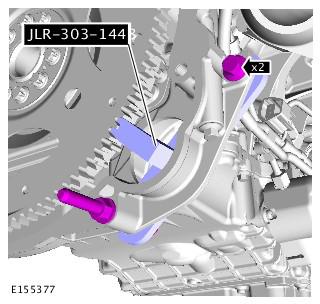

  21. Remove the special tool.
    G00559183
  22. Refer to: STARTER MOTOR .
  23. Refer to: COOLING FAN MOTOR AND SHROUD - V8 S/C 5.0L PETROL .
  24. Refer to: BATTERY DISCONNECT AND CONNECT .
