Fuel Pump Camshaft Timing Check: Check

WARNING: This page is about a different car, the 2011 Jaguar XKR175, 2011 Jaguar XKR, and 2010 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: BATTERY DISCONNECT AND CONNECT .
    2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  2. Raise and support the vehicle.
  3. Refer to: AIR DEFLECTOR .

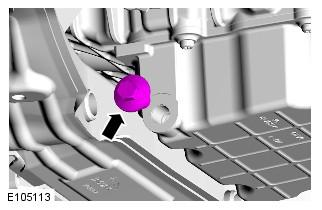

    4. CAUTION: Be prepared to collect escaping oil.
    NOTE:

    Discard the sealing washer.

    Collect the engine oil in a clean container.

  4. See figure.
    G00559134

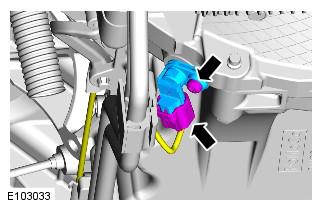

  5. See figure.
    G00559135
    6. CAUTION:

    Only rotate the crankshaft clockwise.

    Make sure that the crankshaft is fully locked.

  6. Install the Special Tool(s): 303-1447
    G00559136

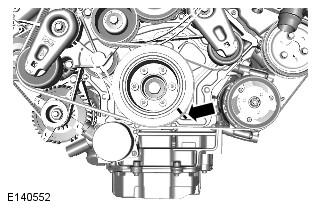

  7. Using a suitable marker, mark the position of the crankshaft pulley as illustrated.
    G00559137

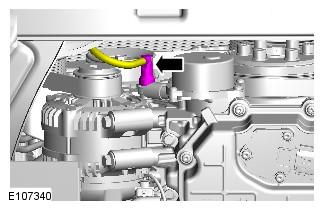

  8. See figure.
    G00559138
    9. NOTE: Discard the seal.
  9. See figure.
    G00559139
  10. Remove the Special Tool(s): 303-1447
    G00559140

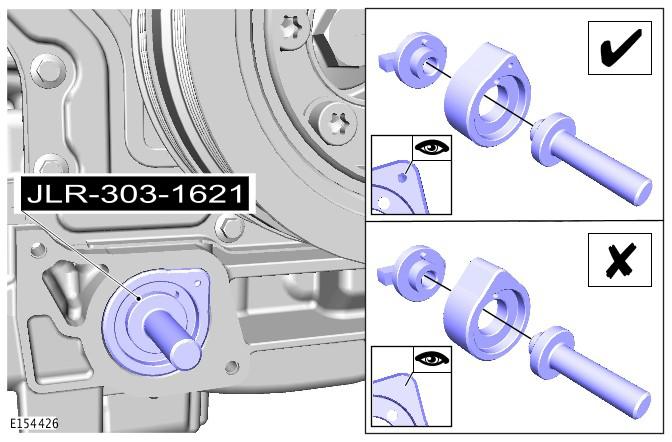

  11. If required, carefully adjust the crankshaft position to allow correct installation of the special tool.

    Install the Special Tool(s): JLR-303-1621

    G00559141
    12. CAUTION: Do not use excessive force when adjusting the crankshaft position.
    NOTE: If the crankshaft timing tool cannot be installed, adjustment of the fuel pump camshaft timing will be required.
    • If required, carefully adjust the crankshaft position to allow correct installation of the special tool.

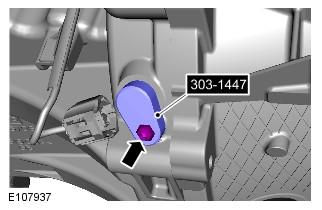

      Install the Special Tool(s): 303-1447

    • If the crankshaft timing tool cannot be installed, adjustment of the fuel pump camshaft timing will be required.

      Refer to: Fuel Pump Camshaft Timing Adjustment  .

    G00559142

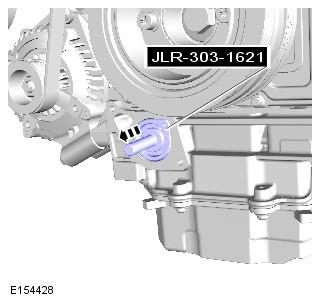

  13. Remove the Special Tool(s): JLR-303-1621
    G00559143

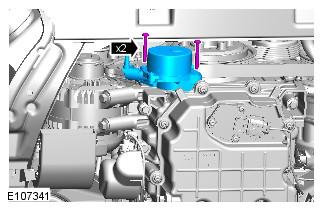

    14. NOTE: Install a new seal.
  14. Torque: 12 Nm
    G00559144
  15. See figure.
    G00559145
  16. Remove the Special Tool(s): 303-1447
    G00559142
  17. Torque: 10 Nm
    G00559146
    18. NOTE: Install a new sealing washer.
  18. Torque: 24 Nm
    G00559147
  19. Refer to: BATTERY DISCONNECT AND CONNECT .
    20. CAUTION: Make sure that the vehicle is left for 5 minutes from filling with oil and that the engine oil level is reading at least minimum (by following Steps 23-27), before starting the engine.
    • Fill the engine with oil - for filling values on vehicles with supercharger:

      Refer to: SPECIFICATIONS  .

    • Clean any residual engine oil from the oil filler cap area.
    21. CAUTION: Make sure that the vehicle has been left for 5 minutes from filling with oil.
  21. Follow the Steps 23-27 before starting the engine.
    • Start the engine and allow to run for 10 minutes, stop the engine.
    • Check for leaks.
    23. CAUTION:

    Make sure that the selector lever and the gearshift mechanism are in the park (P) position.

    Make sure that the hood is open.

    • Turn the ignition on.

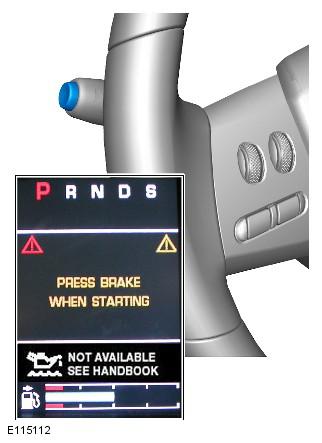

  24. Scroll through the trip menu to access the engine oil level display.
    G00559148
  25. Press the cruise control cancel button twice within 2 seconds.
    G00559149
    • The message center display will revert to the normal display in the trip computer
    • Scroll through the trip menu to access the engine oil level display.
    • Check that the oil level display shows an oil level reading.
    • Only after having started and run the engine for 10 minutes (as indicated in Step 22), switch off the engine, then stabilizing for 10 minutes, take a reading from the oil level display and, if necessary top up with engine oil.
    G00559150
    27. NOTE: If instructed to follow Steps 23-27 in a previous step, return to Step 22 and continue the procedure.
  27. Turn the ignition off.
  28. Allow 10 minutes for the engine oil level to stabilize if there has been additional oil top up.
    29. NOTE: The following steps are to update the average oil level value.
    • Turn the ignition on.
    • Press and hold the cruise control cancel button for more than 2 seconds.
    G00559151
  30. The message center display will revert to the normal display in the trip computer.
  31. Turn the ignition off.
  32. Turn the ignition on.

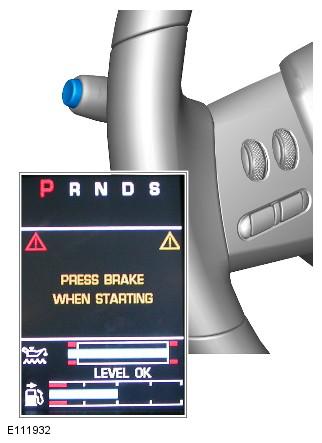

    • Scroll through the trip menu to access the engine oil level display.
    • Make sure that the average oil level value has now been updated.
    G00559152
  34. Refer to: AIR DEFLECTOR .
