Engine Oil Vacuum Draining and Filling: Draining

WARNING: This page is about a different car, the 2011 Jaguar XKR175, 2011 Jaguar XKR, and 2010 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The spilling of hot engine oil is unavoidable during this procedure, care must be taken to prevent scalding.
CAUTION: Correct installation of the oil filler cap can be obtained by tightening the cap until hard stop.
NOTE:

Make sure that the vehicle is parked on level ground.

Clean the components general area prior to dismantling.

  1. Start the engine and allow to run for 10 minutes, stop the engine.
  2. See figure.

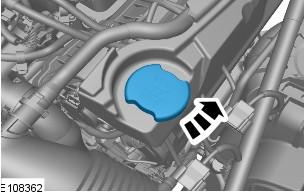

    G00556366
    CAUTION: Allow 10 minutes from turning the engine off before starting oil extraction.
  3. Refer to: ENGINE COVER .
  4. Loosen the element cover 4 complete turns to allow engine oil to drain from the filter cover.

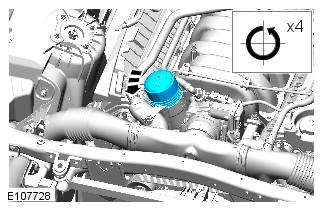

    G00556367
  5. Using the oil vacuum pump drain the oil out through the oil extraction tube.

    Special Tool(s): 303-1484, 303-1484-01

    G00556368
  6. Remove the oil vacuum pump.
  7. See figure.

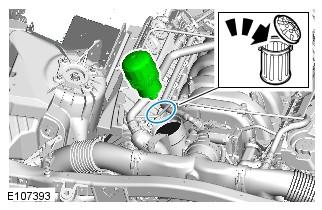

    G00556369
    8. NOTE: Discard the O-ring seals.
  8. See figure.
    G00556370
