Engine Installation
WARNING: This page is about a different car, the 2011 Jaguar XKR175, 2011 Jaguar XKR, and 2010 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
Special Tool(s)
| 303-1435 Engine Lifting Brackets Rear |
|
| 303-1436 Engine Lifting Bracket Front |

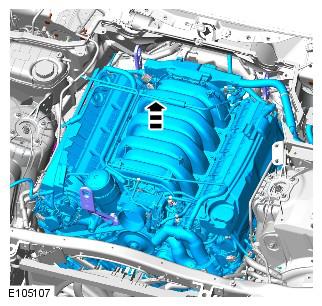

- Using a suitable tool, install the engine.

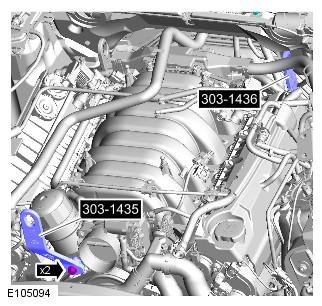

Special Tool(s): 303-1435, 303-1436
- Install the special tool.

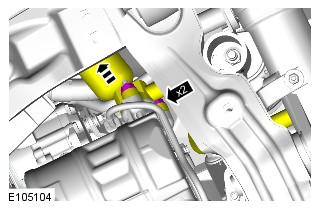

- Torque: 45 Nm

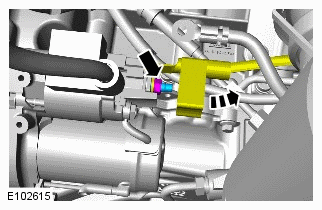

- Torque: 25 Nm

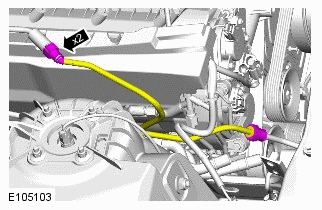

- Torque: 10 Nm
- Torque: 25 Nm

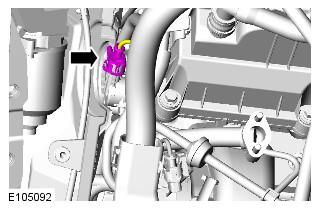

- See figure.

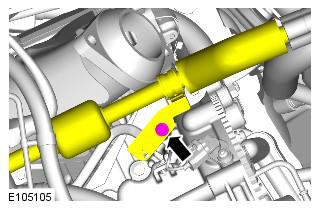

- See figure.

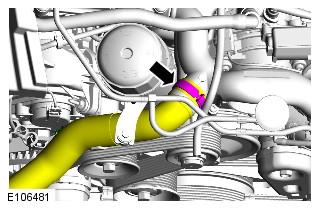

- See figure.

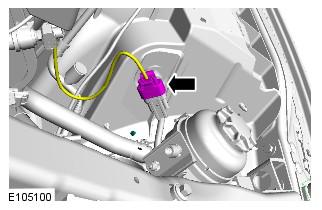

- See figure.

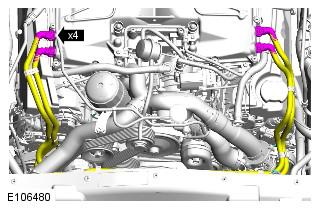

- See figure.

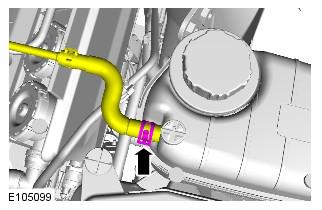

- See figure.
- Torque: 6 Nm
- Torque: 3 Nm
- Torque: 4 Nm

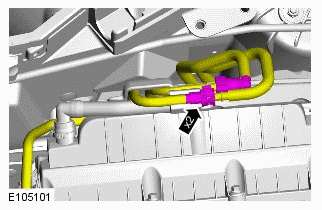

- See figure.

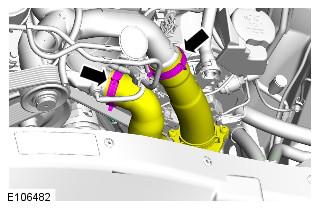

- See figure.
- Torque: 10 Nm
- Torque: 12 Nm
- Torque: 12 Nm
- See figure.
- Torque: 25 Nm
- Special Tool(s): 303-1435, 303-1436
- Torque: 25 Nm
- See figure.
- See figure.
- See figure.
- Refer to: HOOD .
- Torque: 45 Nm
- Torque: 45 Nm
- Refer to: AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
- Refer to: Engine Oil Draining and Filling .
- Refer to: COOLING SYSTEM PARTIAL DRAINING, FILLING AND BLEEDING V8 S/C 5.0L PETROL .
- Refer to: AUTOMATIC TRANSMISSION/TRANSAXLE (V8 5.0L PETROL/V8 S/C 5.0L PETROL) .
- Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR .
- Refer to: COWL VENT SCREEN .
- Refer to: BATTERY DISCONNECT AND CONNECT .
NOTE:
This step requires the aid of another technician.
CAUTION:
Take extra care when handling the component.
