Connecting Rod and Piston Orientation
WARNING: This page is about a different car, the 2011 Jaguar XKR175, 2011 Jaguar XKR, and 2010 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

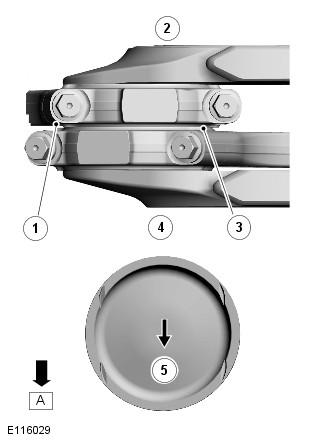

| Item | Description |
|---|---|
| A | Front of engine |
| 1 | Alignment mark |
| 2 | LH side (bank B) |
| 3 | Alignment mark |
| 4 | RH side (bank A) |
| 5 | Piston orientation arrow |
The orientation of the connecting rods and pistons on the crankshaft are given below:
- Bank A - The arrow on the piston crown must face the front of the engine and the cap and connecting rod alignment marks must face the rear of the engine.
- Bank B - The arrow on the piston crown must face the front of the engine and the cap and connecting rod alignment marks must face the front of the engine.
