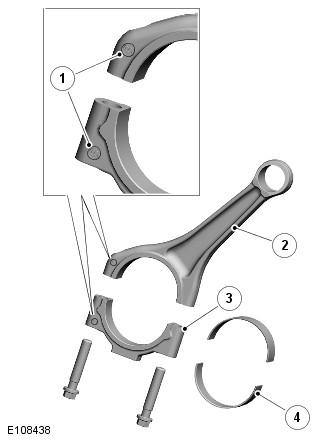

Item
Description
1
Alignment marks
2
Connecting rod
3
Cap
4
Bearings
The correct alignment of the cap with the connecting rod is indicated by marks on adjacent faces of the two components.
