Engine Structure

WARNING: This page is about a different car, the 2011 Jaguar XKR175, 2011 Jaguar XKR, and 2010 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

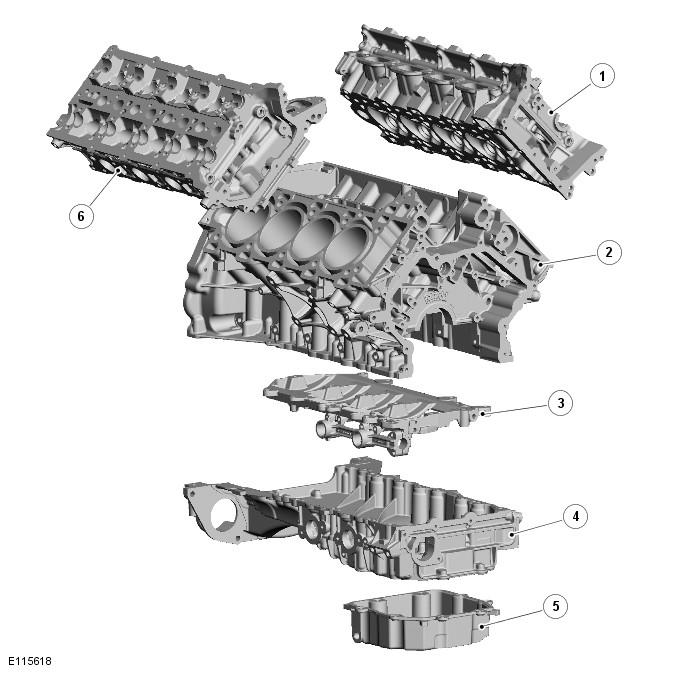

G00556341
Item Description
1 LH (left hand) cylinder head (bank B)
2 Cylinder block
3 Windage tray
4 Sump body
5 Sump pan
6 RH (right hand) cylinder head (bank A)
