Cylinder Heads

WARNING: This page is about a different car, the 2011 Jaguar XKR175, 2011 Jaguar XKR, and 2010 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

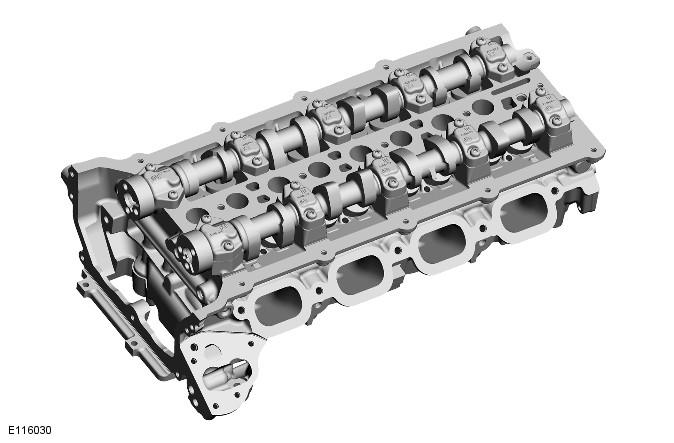

NOTE: RH (right-hand) (A bank) cylinder head shown, LH (left-hand) (B bank) cylinder head similar.
G00556351

The cylinder heads are manufactured in gravity die cast aluminum alloy and are unique for each cylinder bank. Deep-seated bolts reduce distortion and secure the cylinder heads to the cylinder block.

Each cylinder is served by four valves. To help achieve the required gas-flow characteristics, these are arranged asymmetrically around the cylinder bore. Each cylinder has a centrally mounted fuel injector and spark plug.

The cylinder head gasket is of a multi-layer steel construction.
