Front Inner Parking Aid Sensor: Installation
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
- See figure
- To install, reverse the removal procedure.
CAUTION:

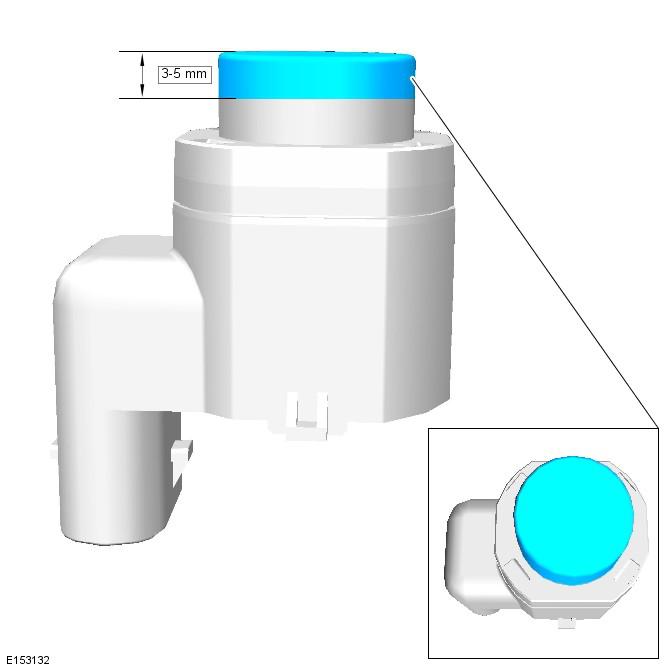

If a new sensor is installed, make sure that the area illustrated is the only
area painted. Failure to follow this instruction may result in the component malfunctioning.
NOTE:
On vehicles that are equipped with black or unpainted bumpers, the sensor(s) do not require painting.
