Low Washer Fluid Warning Indicator Switch: Removal
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle.
- Remove the RH fender splash shield. Refer to Fender Splash Shield information.
- Drain the washer reservoir fluid.
- Position a container to collect the fluid.

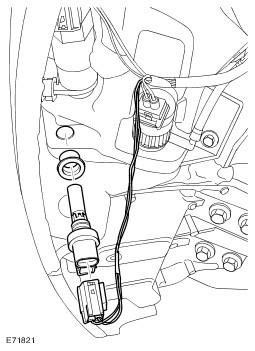

- Remove the low washer fluid warning indicator switch.
- Disconnect the electrical connector.
- Remove and discard the seal.
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
