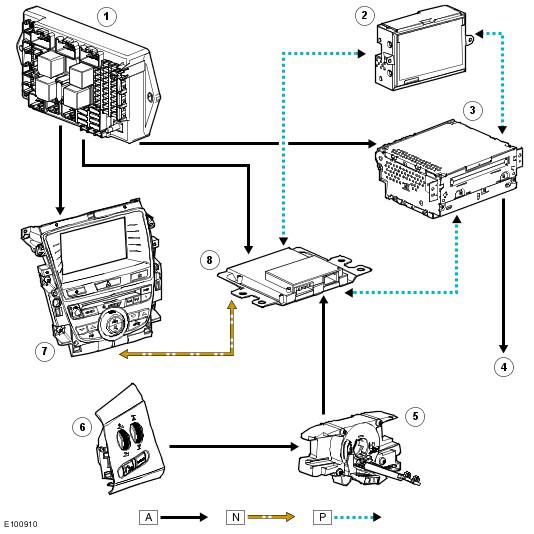

Control Diagram - Standard Audio System (Up To 2009 My)
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired; N = Medium speed controller area network (CAN) bus; P = MOST ring
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Auxiliary Junction Box (AJB) |
| 2 |
TSD |
| 3 |
Integrated audio module |
| 4 |
To speakers |
| 5 |
Clock spring |
| 6 |
Remote audio switches |
| 7 |
Integrated control panel |
| 8 |
Information and entertainment module |
