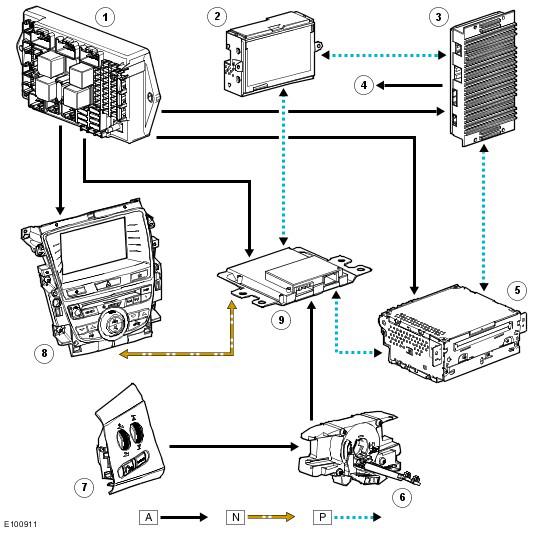

Control Diagram - Premium Audio System (Up To 2009 My)
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired; N = Medium speed controller area network (CAN) bus; P = MOST ring
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
AJB |
| 2 |
TSD |
| 3 |
Audio amplifier |
| 4 |
To speakers |
| 5 |
Integrated audio module |
| 6 |
Remote audio switches |
| 7 |
Clock spring |
| 8 |
Integrated control panel |
| 9 |
Information and entertainment module |
