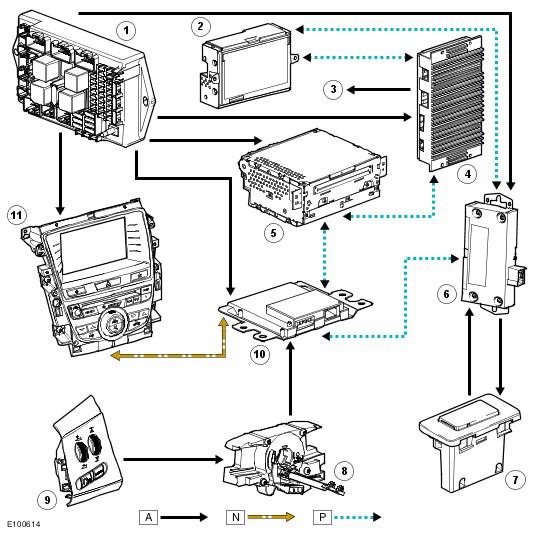

Control Diagram - Premium Audio System (From 2009 My)
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired; N = Medium speed controller area network (CAN) bus; P = MOST ring
| Item Number | Description |
|---|---|
| 1 | AJB |
| 2 | TSD |
| 3 | To speakers |
| 4 | Audio amplifier |
| 5 | Integrated audio module |
| 6 | Auxiliary USB unit |
| 7 | Auxiliary input panel |
| 8 | Clock spring |
| 9 | Remote audio switches |
| 10 | Information and entertainment module |
| 11 | Integrated control panel |
