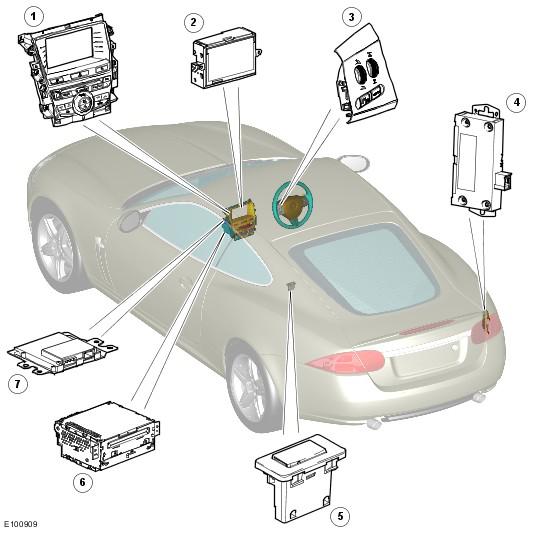

Component Location
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Integrated control panel |
| 2 |
Touch Screen Display (TSD) |
| 3 |
Remote audio switches |
| 4 |
Auxiliary Universal Serial Bus (USB) unit (from 2009 Model Year (MY)) |
| 5 |
Auxiliary input panel (from 2009 MY) |
| 6 |
Integrated audio module |
| 7 |
Information and entertainment Module |
