Left-Hand Fuel Rail High-Pressure Fuel Pump: Removal

WARNING: This page is about a different car, the 2011 Jaguar XK and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to Battery Disconnect and Connect information.
  2. Refer to Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions information.
  3. Refer to Fuel System Pressure Release - 5.0L information.
  4. Refer to Engine Cover - 5.0L information.
  5. Refer to Engine Mount RH information.
  6. Refer to Fuel Injection Component Cleaning information.
  7. See figure
    GJ0022932
  8. See figure
    GJ0013229
  9. Refer to Right Air Cleaner Outlet Intermediate Pipe information.
  10. CAUTION: Be prepared to collect escaping fluids.
    CAUTION: Make sure that all openings are sealed. Use new blanking caps.

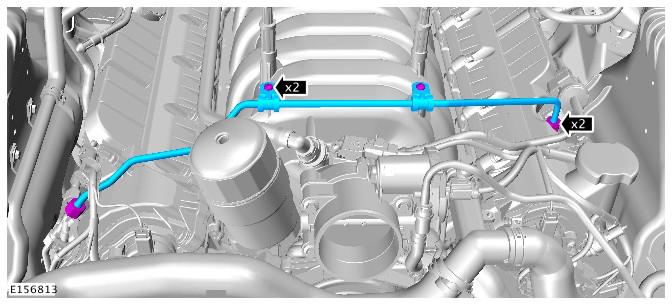

  11. See figure
    G00532089

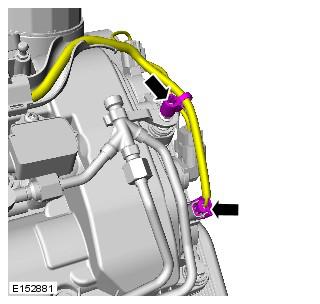

  12. See figure
    G00532090
  13. WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mixtures are always present and may ignite. Failure to follow these instructions may result in personal injury.
    CAUTION: Be prepared to collect escaping fluids.
    CAUTION: Make sure that all openings are sealed. Use new blanking caps.
  14. See figure
    GJ0012987
  15. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  16. Raise and support the vehicle.
  17. Refer to Generator information.

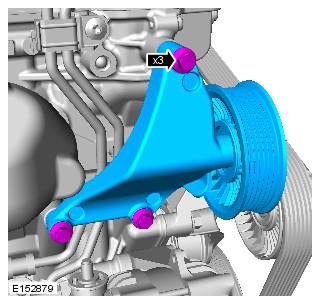

  18. See figure
    G00532091
  19. See figure
    GJ0012994

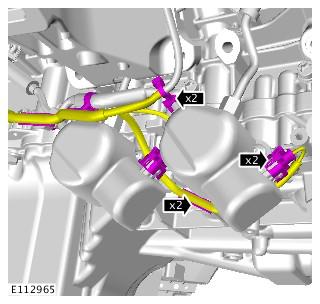

  20. See figure
    G00532092
  21. See figure
    GJ0012852

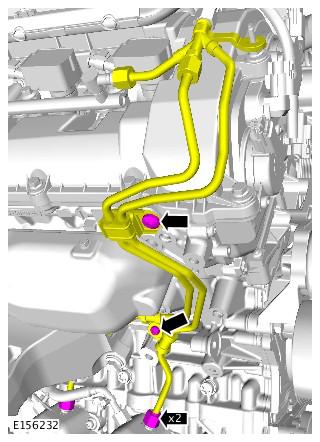

  22. See figure
    G00532093
  23. See figure
    GJ0012858
  24. CAUTION: Be prepared to collect escaping fluids.
  25. Loosen the Torx screws a turn each at a time.
    GJ0012859
  26. CAUTION: Be prepared to collect escaping fluids.
  27. See figure
    GJ0012860
