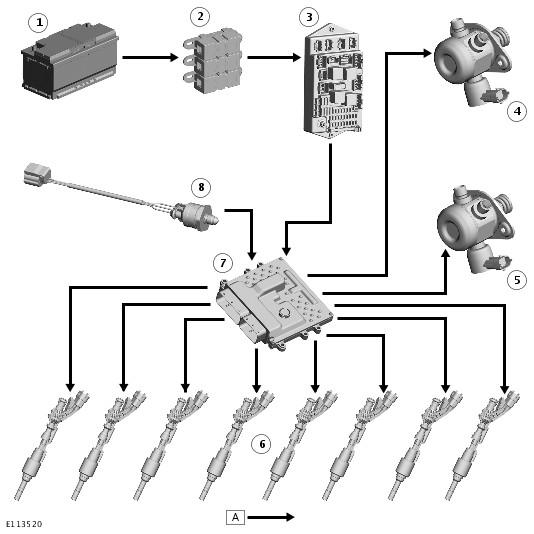

Control Diagram
WARNING: This page is about a different car, the 2011 Jaguar XK and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Battery |
| 2 |
BJB (battery junction box) (175 A megafuse) |
| 3 |
CJB (central junction box) |
| 4 |
No. 1 HP fuel pump |
| 5 |
No. 2 HP fuel pump |
| 6 |
Fuel injectors |
| 7 |
ECM |
| 8 |
FRP sensor |
