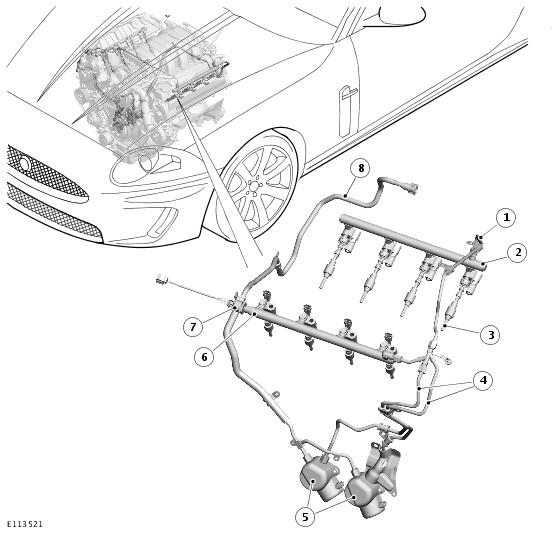

Component Location
WARNING: This page is about a different car, the 2011 Jaguar XK and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Crossover tube |
| 2 |
LH (left hand) fuel rail |
| 3 |
Fuel injector |
| 4 |
HP (high pressure) fuel lines |
| 5 |
HP fuel pumps and covers |
| 6 |
RH (right hand) fuel rail |
| 7 |
FRP (fuel rail pressure) sensor |
| 8 |
LP (low pressure) fuel lines |
