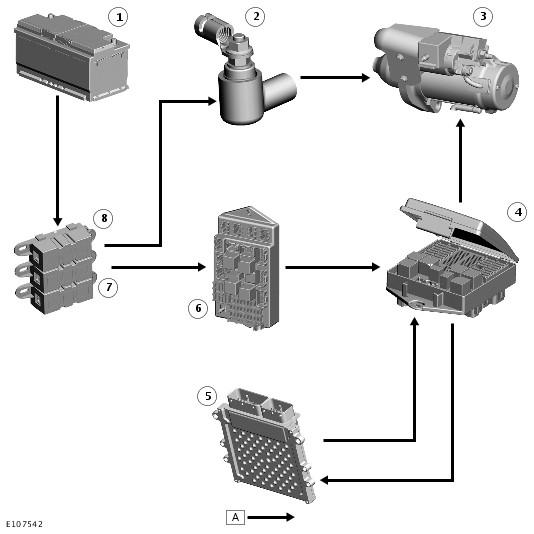

Control Diagram
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Battery |
| 2 |
Positive remote charge terminal |
| 3 |
Starter motor |
| 4 |
Power distribution box (starter relay) |
| 5 |
ECM |
| 6 |
CJB |
| 7 |
BJB (battery junction box) (175 A megafuse) |
| 8 |
BJB (400 A megafuse) |
