Tire Pressure Monitoring System Rear Antenna: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. Refer to SPECIFICATIONS information.
    2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  2. Raise and support the vehicle.
  3. Remove the LH rear wheel and tire. See Wheel and Tire .
  4. Release the rear lower edge of the rear fender splash shield.
    • Remove the 5 Torx bolts.
    • Tie the splash shield aside.
      GJ0008928

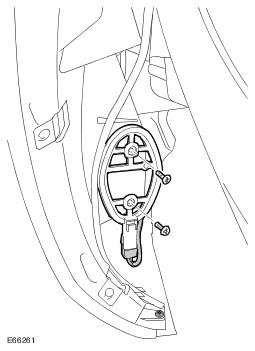

  5. Remove the tire pressure antenna.
    • Disconnect the electrical connector.
    • Remove the 2 clips.
      GJ0008929
