Tire Pressure Monitoring System Module - Convertible: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover and disconnect the battery ground cable. Refer to SPECIFICATIONS information.
  2. Make the SRS system safe.
  3. Remove the LH roll over protection unit.
  4. Remove the rear seat RH backrest retaining bracket.
    • Remove the 2 nuts and 2 bolts.
      GJ0009485
  5. Remove the RH roll over protection unit.
    • Disconnect the electrical connector.
    • Remove the 4 Torx bolts.

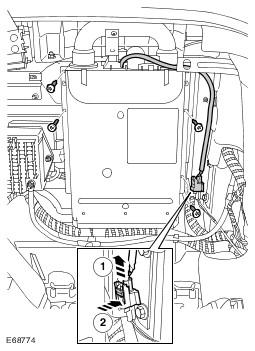

      GJ0009486
  6. Release the auxiliary junction box mounting bracket.
    • Remove the 3 nuts.
      GJ0009487
  7. Remove the tire pressure monitoring module.
    • Remove the 2 nuts.
    • Disconnect the 2 electrical connectors.
      GJ0009488
